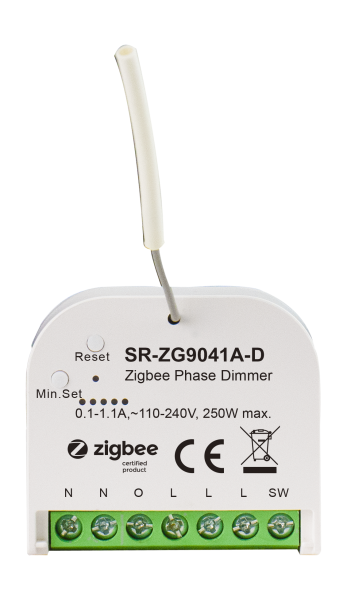

ZigBee 3.0 Mini AC Triac Phase-Cut Dimmer Single Live Wire with Power-Metering SR-ZG9041A-D
1. Single live wire wiring (No neutral wire is required). Using single live wire wiring can easily realize wireless intelligent transformation for some old buildings which may not have reserved neutral wires.
2. Precise energy management: the power-meter enables real-time and accurate monitoring of the energy consumption of lighting device.
•ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol
•100-240VAC Wide Input and Output Voltage•Supports resistive loads, capacitive loads or inductive loads
•1 Channel Output, Up to 250W
•Input and Output with Screw Terminals, Safe and Reliable
•Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
•Enables to control ON/OFF and light intensity of connected light source
•ZigBee end device that supports Touchlink commissioning
•Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
•Compatible with universal ZigBee gateway products
•Support power metering
•Mini Size, Easy to be Installed into a standard 86*86mm wall box
• Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
• Advanced microprocessor control
• Implemented algorithm of smart light source detection
• Active power and energy metering functionality
• Soft start function• Innovative minimum dimming level and startup brightness setting function
• Works with various types of switches – momentary, toggle, three-way, etc.
• Active element: semiconductor electronic switch
• To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicableregulations
• The Bypass is an extension unit
