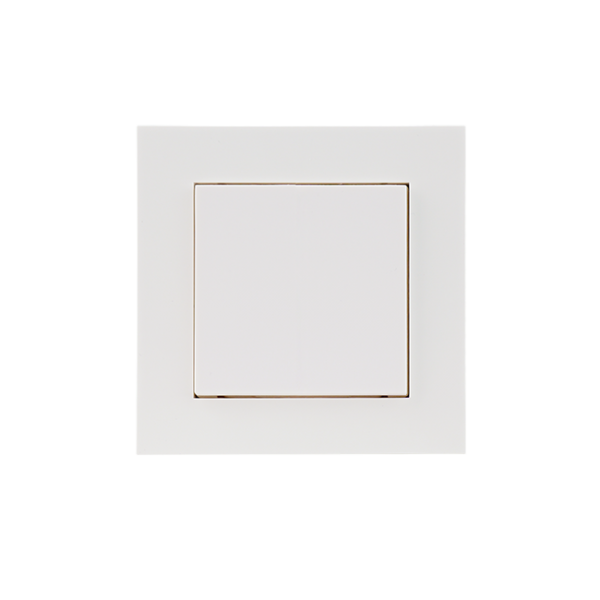

The SR-ZG2835KAC-NK2-SW 2-Key Zigbee Push Button Smart Switch is a versatile ZigBee 3.0-based AC switch designed for both neutral and no-neutral wiring setups. It supports resistive, capacitive, and inductive loads with a maximum load of 10A per channel. This smart switch allows for the control on / off of connected light sources and features real-time energy metering to monitor consumption. It can be controlled via ZigBee gateway, ZigBee remote, or local push buttons. Additionally, it supports Touchlink commissioning, self-forming ZigBee networks, and binding with ZigBee Green Power remotes (up to 20 devices). Compatible with universal ZigBee gateways and EU standard frames, it is easy to install and provides reliable wireless control at a 2.4GHz frequency.
Key Features
• ZigBee push button AC switch based on latest ZigBee 3.0 protocol
• 100-240VAC wide input and output voltage, can work under no neutral wiring and with neutral wiring, self-adaptive
• Supports resistive loads, capacitive loads or inductive loads
• 1 channel output, max. load 10A
• Enables to control ON/OFF of connected light source
• Supports energy metering, real time energy consumption can be monitored
• ZigBee device that supports Touchlink commissioning
• Can be controlled by zigbee gateway, zigbee remote and local push buttons
• Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
• Supports self-forming zigbee network without coordinator and add other devices to the network
• Supports find and bind mode to bind a ZigBee remote
• Supports zigbee green power and can bind max. 20 zigbee green power remotes
• Compatible with universal ZigBee gateway products

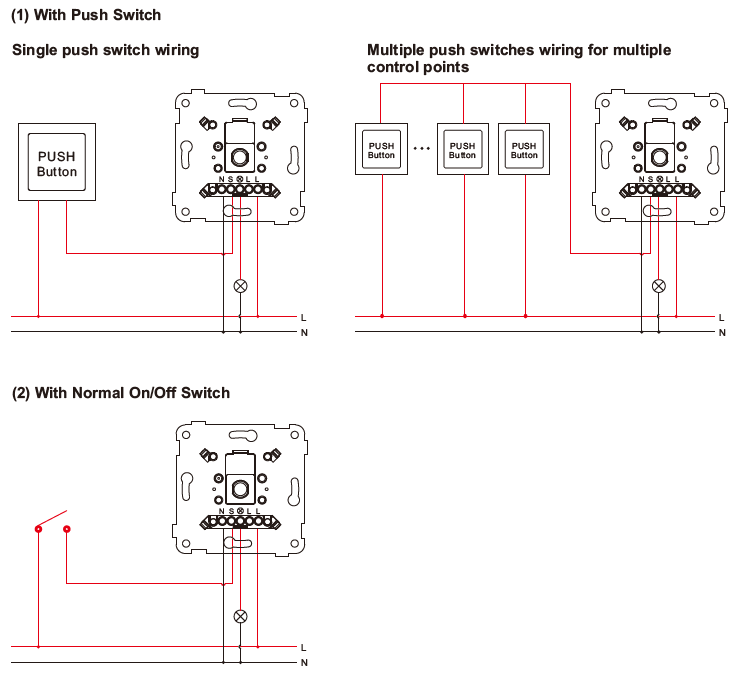

• With push switch input, can be controlled by universal AC push switches
• Standard size, can be compatible with existing EU standard frames, and installed into standard size wall box
• Radio Frequency: 2.4GHz
• Waterproof grade: IP20
