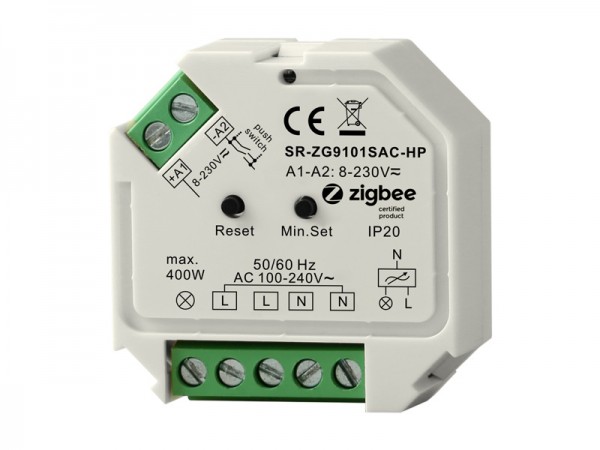

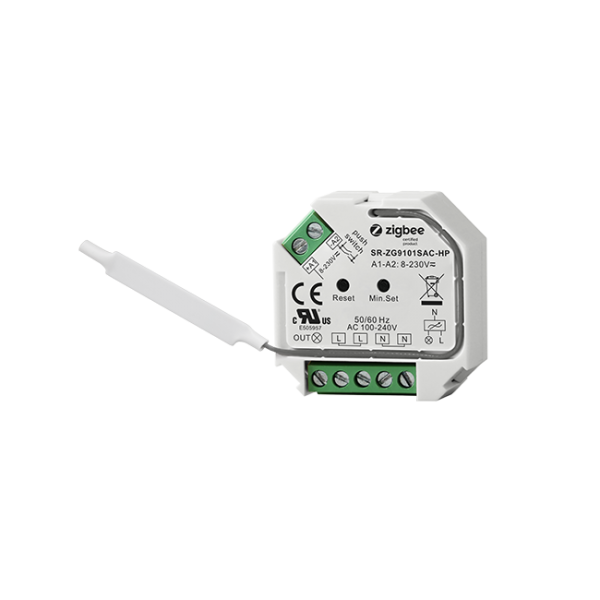

ZigBee AC Triac Phase-Cut Dimmer Neutral + Live Wire SR-ZG9101SAC-HP
L+N input and L+N output, Neutral is required.
The SR-ZG9101SAC-HP is an innovative AC phase-cut dimmer with ZigBee control interface. The AC dimmer is designed with 100-240VAC wide input and output, 1 channel and maximum 400W output. The ZigBee AC dimmer is available with both leading edge dimming version and trailing edge dimming version for choosing. The innovative minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness. Also it is easy to delete the minimum brightness. The AC dimmer can be compatible with universal ZigBee coordinator or gateway controller to be paired to the network. It is controllable from your ZigBee gateway interface or remote controllers that are added to the network and bind with the dimmer.
The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.
Key Features
- AC phase-cut dimmer with ZigBee control interface
- Zigbee certified
- Safe and reliable full isolation design
- 100-240VAC input and 100-240VAC output
- 1 channel, maximum 400W output
- Available with both leading edge dimming version and trailing edge dimming version for choosing
- Compatible with universal ZigBee coordinator or gateway controller
- Controllable from your ZigBee gateway interface or remote controllers that are added to the network and bind with the dimmer
- Can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink
- Supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes
- Innovative minimum brightness setting function
- To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights
- Input and Output with Screw Terminals, Safe and Reliable
- Mini Size, Easy to be Installed into A Standard 86*86mm Wall Box
