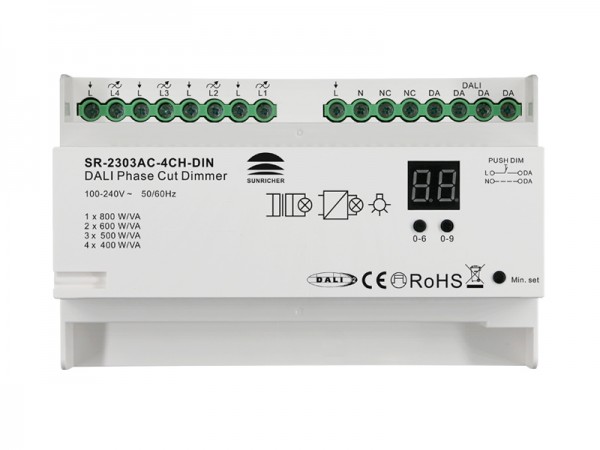

The SR-2303AC-4CH-DIN is a DALI + Push phase cut dimmer designed with 100-240VAC input and 100-240VAC output and safe and reliable full isolation design to control phase cut dimmable LED lamps, traditional incandescent and halogen lights. It is also compatible with universal phase cut dimmable LED drivers. The DALI phase dimmer is designed with DALI control interface with digital numeric digital display to set and show DALI address freely. The AC dimmer adopts trailing edge dimming (reverse-phase control) and comes with 4 channels and maximum 1.8A per channel output. 1/2/3/4 DALI addresses can be settable to control 4 output channels synchronously or separately. The innovative minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness. Also it is easy to delete the minimum brightness. The DALI phase dimmer can be compatible with universal DALI systems.
It is designed with DIN rail installation style, and can be easily mounted on standard 35mm DIN rail.
Key Features
- DALI certified
- TUV CE certified
- Safe and reliable full isolation design
- 100-240VAC input and 100-240VAC output
- 4 channel, maximum 1.8A per channel output
- DALI control interface with digital numeric digital display to set and show DALI address freely
- Can be controlled by existing push button switch even without a DALI system
- 1/2/3/4 DALI addresses can be settable to control 4 output channels synchronously or separately
- Trailing edge dimming (reverse-phase control)
- Great compatibility with universal DALI master controllers
- Innovative minimum brightness setting function
- To dim and switch phase cut dimmable LED lamps, traditional incandescent and halogen lights
- Compatible with universal phase cut dimmable dimmable LED drivers
