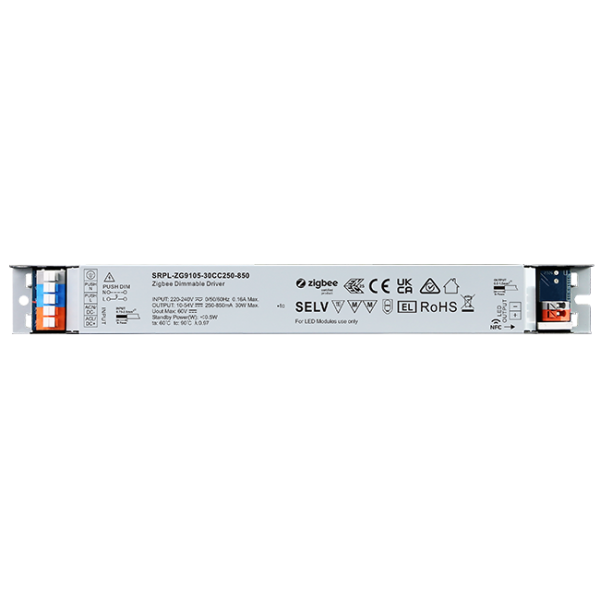

This Dimmable LED Driver, built on the ZigBee 3.0 protocol, offers advanced features for controlling LED lighting systems with precision and efficiency. Designed with a robust linear metal housing, it provides a maximum output power of 30W and offers selectable current ranges from 250 to 850mA through an NFC program tool, with adjustments down to 0.1mA for fine-tuned control. The driver allows for customization of dimming curves, power-on state, soft start, and soft off settings, all via the NFC program tool. Its Class II power supply ensures safety with an isolated design, while maintaining high power factor and efficiency. The driver enables the dimming and switching of LED luminaires, providing seamless Amplitude/CCR dimming for smooth, deep adjustments. As a ZigBee end device, it supports Touchlink commissioning for easy pairing with compatible ZigBee remotes and can bind up to 20 ZigBee Green Power switches, offering expanded control options. It is also compatible with universal ZigBee gateway products, allowing for easy integration into smart lighting systems. With an IP20 rating, it is perfect for indoor applications and comes backed by a 5-year warranty, ensuring reliability and long-lasting performance.
Key Features
• Dimmable LED driver, ZigBee device based on ZigBee 3.0 protocol
• Dimmable LED driver with linear metal housing. Max. output power 30W
• 250-850mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• Dimming curve/Power on state/Soft start/Soft off via NFC program tool
• Class Ⅱ power supply, isolated design
• High power factor and efficiency
• To switch and dim LED lighting luminaries
• Amplitude/CCR dimming, smooth and deep dimming
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink
• Supports zigbee green power and can bind max. 20 zigbee green power switches
• Compatible with universal ZigBee gateway products
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
