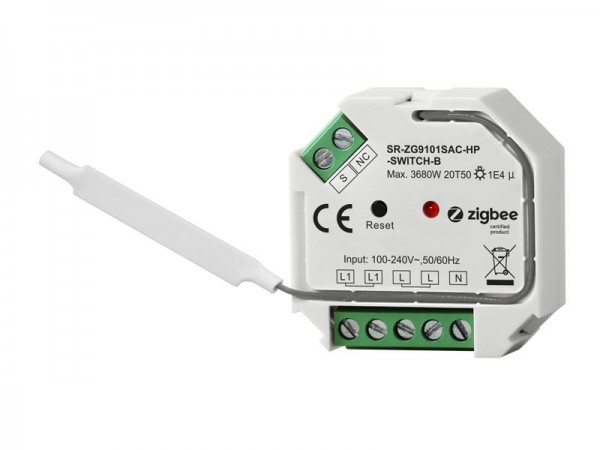

- 16 Amps Zigbee Relay On Off Light Device SR-ZG9101SAC-HP-Switch-B
The SR-ZG9101SAC-HP-Switch-B is an innovative AC in wall switch with ZigBee control interface and 16A relay output based on Zigbee 3.0. The Zigbee relay is designed with 100-240VAC wide input and output, 1 channel and maximum 3680W output. The ZigBee on/off light device supports resistive loads and capacitive loads, and enables to control ON/OFF of connected load. The AC switch can be compatible with universal ZigBee coordinator or gateway controller. It is controllable from your ZigBee gateway interface or remote controllers that are added to the network and bind with the switch.
The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power switches directly without zigbee hub or gateway.
Key Features
Specifications
Part No. | Input Voltage | Output Voltage | Output Current | Output Power | Load type | Dimension (mm) |
---|---|---|---|---|---|---|
SR-ZG9101SAC-HP-Switch-B | 100-240VAC | 100-240VAC | 16A max. | 3680W max. @ 220V | IncandescentHv-halogen lampsLED lamps | L45.5*W45*H20.3 |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-ZG9101SAC-HP-Switch-B User Manual
