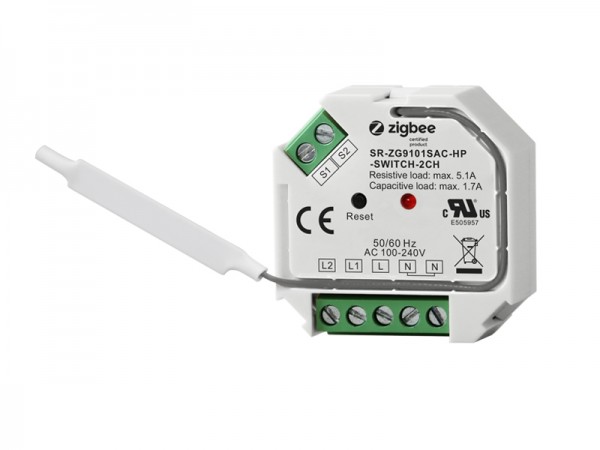

- ZigBee AC 2-Gang In Wall Switch SR-ZG9101SAC-HP-Switch-2CH
The SR-ZG9101SAC-HP-Switch-2CH is an innovative AC 2-Gang in wall switch with ZigBee control interface. The AC switch is designed with 100-240VAC wide input and output, 2 channels and maximum 1170W/CH output for incandescent and HV halogen lamps, 390W/CH for LED lamps. The ZigBee AC switch supports resistive loads and capacitive loads, and enables to control ON/OFF of connected load. The AC switch can be compatible with universal ZigBee coordinator or gateway controller to be paired to the network. It is controllable from your ZigBee gateway interface or remote controllers that are added to the network and bind with the switch.
The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power switches directly without zigbee hub or gateway.
Key Features
Specifications
Part No. | Input Voltage | Output Voltage | Output Current | Output Power | Load type | Dimension (mm) |
---|---|---|---|---|---|---|
SR-ZG9101SAC-HP-Switch-2CH | 100-240VAC | 100-240VAC | 5.1A max. for resistive loads1.7A max. for capacitive loads | Resistive load: max. 1170W/CH @ 230VCapacitive load: max. 390W @ 230V | IncandescentHv-halogen lampsLED lamps | L45.5*W45*H20.3 |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-ZG9101SAC-HP-Switch-2CH User Manual
