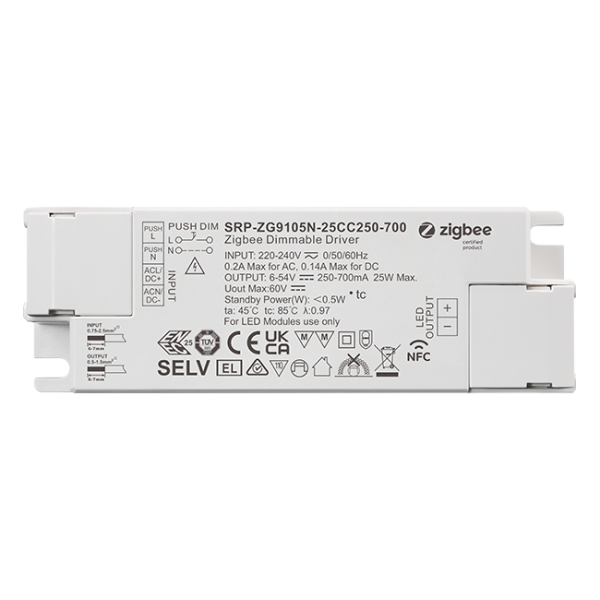

1 Channel 25W NFC Constant Current ZigBee Single Color LED Dimmable Driver SRP-ZG9105N-25CC250-700

SRP-ZG9105N-25CC250-700 is a NFC Dimmable 25w LED Driver with 1 channel constant current output and adjustable current from 250mA to 700mA, which enables it to be suitable for constant current LED lights with different current. It is designed with 220-240VAC input. Power factor of the driver can be over 0.96 and efficiency is higher than 83%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The LED driver is designed with ZigBee control interface and can pair to ZigBee network and be controlled from your controller or hub interface. The driver can be compatible with universal ZigBee gateway or coordinator. In addition, the ZigBee device supports TouchLink commissioning to bind ZigBee remotes directly and controlled by the remotes.

The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.

Key Features

• Dimmable LED driver, ZigBee device based on ZigBee 3.0 protocol
• Dimmable LED driver. Max. output power 25W
• 250-700mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• Dimming curve/Power on state/Soft start/Soft off via NFC program tool.
• Class Ⅱ power supply, full isolated plastic case
• High power factor and efficiency
• PUSH DIM function enabled
• Able to On/Off and control LED lighting luminaries‘ brightness
• Amplitude/CCR dimming, smooth and deep dimming
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink
• Supports zigbee green power and can bind max. 20 zigbee green power switches
• Compatible with universal ZigBee gateway products
• Waterproof grade: IP20, suitable for indoor LED lighting applications
• 5 years warranty
