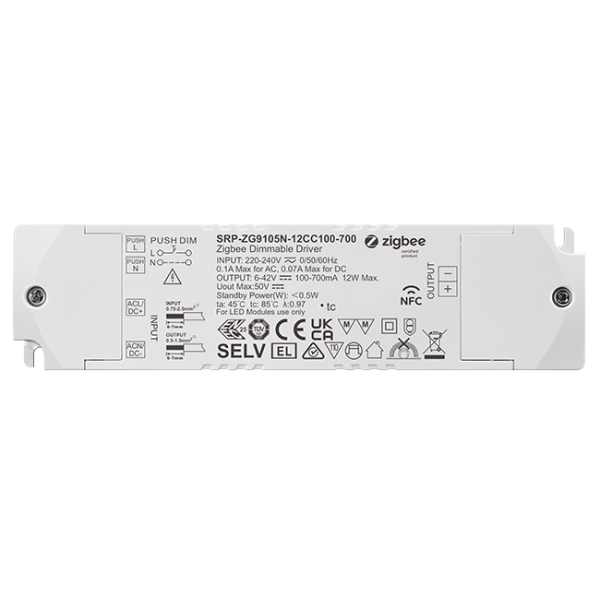

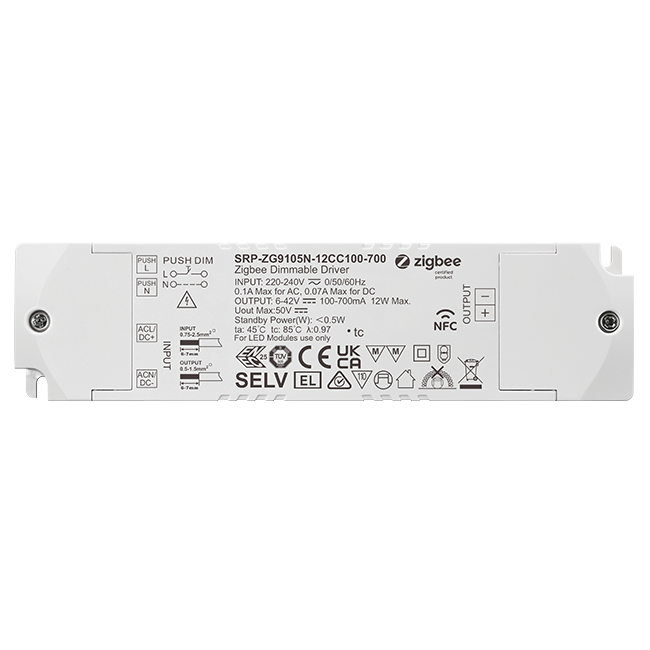

1 Channel 12W NFC Constant Current ZigBee Single Color LED Dimmable Driver SRP-ZG9105N-12CC100-700

SRP-ZG9105N-12CC100-700 is a NFC Dimmable 10w LED Driver with 1 channel constant current output and adjustable current from 100ma to 700ma, which enables it to be suitable for constant current LED lights with different current. It is designed with 220-240VAC input. Power factor of the driver can be over 0.94 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The LED driver is designed with ZigBee control interface and can pair to ZigBee network and be controlled from your controller or hub interface. The driver can be compatible with universal ZigBee gateway or coordinator. In addition, the ZigBee device supports TouchLink commissioning to bind ZigBee remotes directly and controlled by the remotes.

The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.

Key Features

• Dimmable LED driver, ZigBee device based on ZigBee 3.0 protocol
• Dimmable LED driver. Max. output power 12W
• 100-700mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• Dimming curve/Power on state/Soft start/Soft off via NFC program tool.
• Class Ⅱ power supply, full isolated plastic case
• High power factor and efficiency
• PUSH DIM function enabled
• To switch and dim LED lighting luminaries
• Amplitude/CCR dimming, smooth and deep dimming
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink
• Supports find and bind mode to bind a ZigBee remote
• Supports zigbee green power and can bind max. 20 zigbee green power switches
• Compatible with universal ZigBee gateway products
• Waterproof grade: IP20, suitable for indoor LED lighting applications
• 5 years warranty
