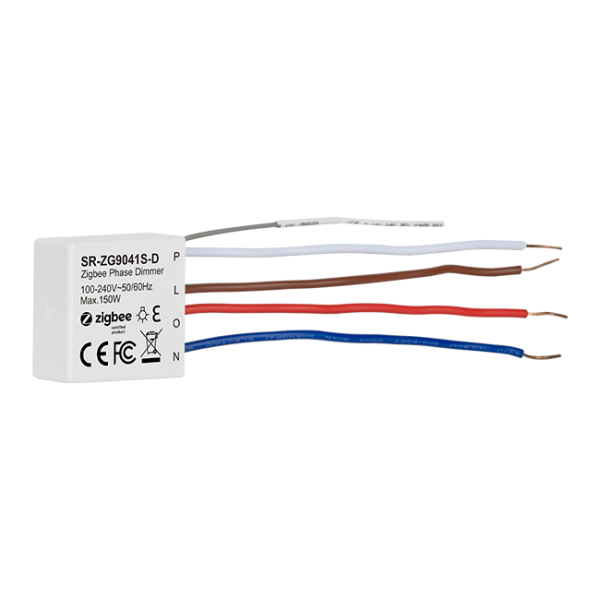

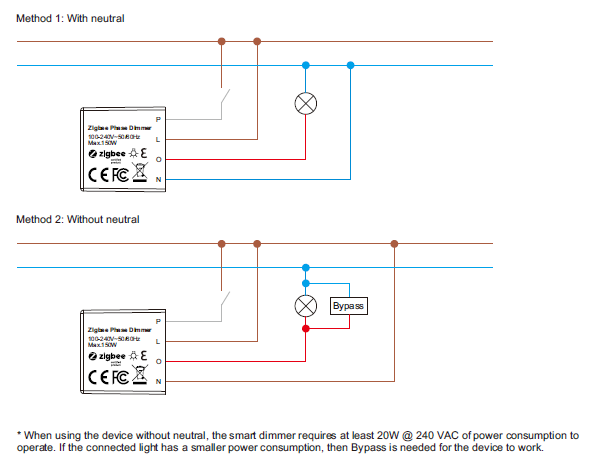

The Zigbee AC Phase Cut Dimmer is a compact smart dimming solution based on the latest Zigbee 3.0 protocol, supporting both two-wire and three-wire installations. It controls ON/OFF and brightness for various dimmable light sources, including LED, halogen, and CFL lamps. Featuring trailing-edge dimming, power metering, and smart load detection, it ensures smooth, safe, and efficient lighting control. Compatible with Zigbee remotes and gateways, it offers Touchlink pairing, overload protection, and soft start for enhanced reliability and user comfort. Ideal for modern smart home or commercial lighting systems.
Key Features:
• ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol
• 100-240VAC Wide Input and Output Voltage
• Supports resistive loads, capacitive loads or inductive loads
• 1 Channel Output, Up to 150W
• Trailing edge dimming
• Enables to control ON/OFF and light intensity of connected light source
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
• Compatible with universal ZigBee gateway products
• Supports power metering
• Over load protection and over temperature protection
• Ultra Mini Size
Download Center
To know further details of this product, please download the following user manual.
SR-ZG9041S-D User Manual
