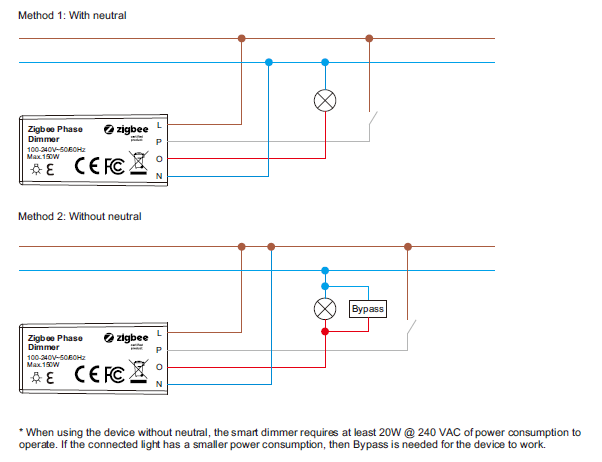

The Zigbee AC Phase Cut Dimmer is an ultra-compact smart dimmer based on the latest Zigbee 3.0 protocol, designed for 100–240VAC systems. It supports resistive, capacitive, and inductive loads up to 150W, offering smooth trailing-edge dimming control for various light sources, including LED, halogen, and CFL lamps. With two-wire or three-wire installation, Touchlink pairing, and universal Zigbee gateway compatibility, it ensures easy setup and flexible integration. Advanced features include power metering, smart load detection, soft start, and protection against overload and overheating, making it ideal for smart home and commercial lighting automation.
Key Features:
• ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol
• 100-240VAC Wide Input and Output Voltage
• Supports resistive loads, capacitive loads or inductive loads
• 1 Channel Output, Up to 150W
• Trailing edge dimming
• Enables to control ON/OFF and light intensity of connected light source
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
• Compatible with universal ZigBee gateway products
• Supports power metering
• Over load protection and over temperature protection

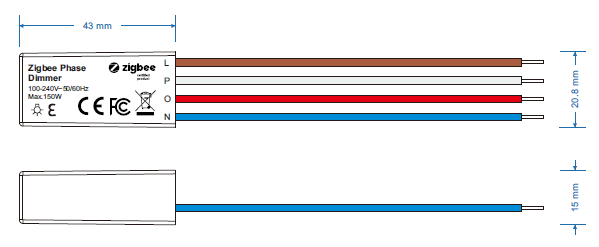

• Ultra Mini Size
Download Center
To know further details of this product, please download the following user manual.
SR-ZG9041L-D User Manual
