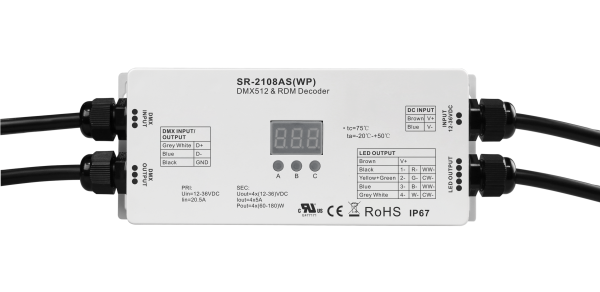

The SR-2108AS(WP) is a waterproof low volt constant voltage DMX512 decoder with 4 channel 5A per channel output. The DMX512 decoder is designed with DMX512 compliant control interface, which enables users to set DMX address freely and shows the address on digital numeric display.
Key Features
- Standard DMX512 compliant control interface.
- RDM function enabled to realize intercommunication between DMX master and decoder.
- For example, DMX decoder’s address can be assigned by DMX master console.
- With digital display to show data directly, easily to set and show DMX address.
- Total 4 PWM output channels, common anode.
- DMX address manually settable.
- DMX channel quantity from 1CH~4CH settable
- Output PWM frequency from 200HZ ~ 35K HZ settable.
- Output dimming curve gamma value from 0.1 ~ 9.9 settable.
- To work with power repeater to expand output power unlimitedly.
- Waterproof grade:IP67
-Product-Dimension.png)
-Wiring-Diagram.png)
