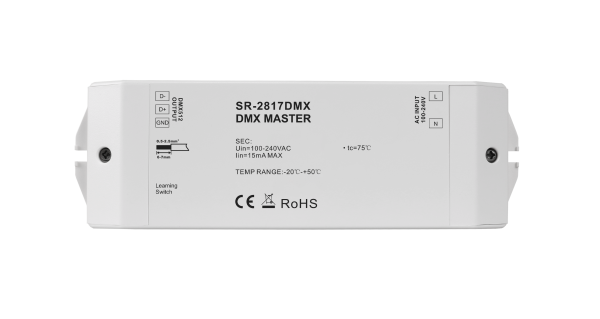

- DMX Master Controller With RF/WiFi Wireless Control SR-2817DMX
The SR-2817 is a DMX master controller which receives RF or WiFi wireless signal from remote controllers, IOS or Android mobile devices and sends out DMX512 signal to DMX decoders so that the DMX controller can be remote or WiFi controlled. The master converts RF or WiFi signal to DMX signal and enables wireless control. Easier and more convenient control can be achieved via this RF and WiFi to DMX master matching with RF remote or WiFi controller SR-2818, SR-2819 or SR-2819S, IOS and Android. Both AC and DC input version are available.
Key Features
Part No. | Input Voltage | Radio Frequency | Output | Dimension (mm) | Remarks |
---|---|---|---|---|---|
SR-2817DMX | 100-240VAC | 869.5/434/916.5MHz | DMX512 Signal | 57*178*21 | Match with SR-2818, SR-2819, SR-2819S |
SR-2817Wi | 100-240VAC | 869.5/434/916.5MHz | DMX512 Signal | 57*178*21 | Match with SR-2818, SR-2819, SR-2819S, IOS, Android |
SR-2817-DC | 12-36VDC | 869.5/434/916.5MHz | DMX512 Signal | 57*178*21 | Match with SR-2818, SR-2819, SR-2819S |
SR-2817Wi-DC | 12-36VDC | 869.5/434/916.5MHz | DMX512 Signal | 57*178*21 | Match with SR-2818, SR-2819, SR-2819S, IOS, Android |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2817 User Manual
