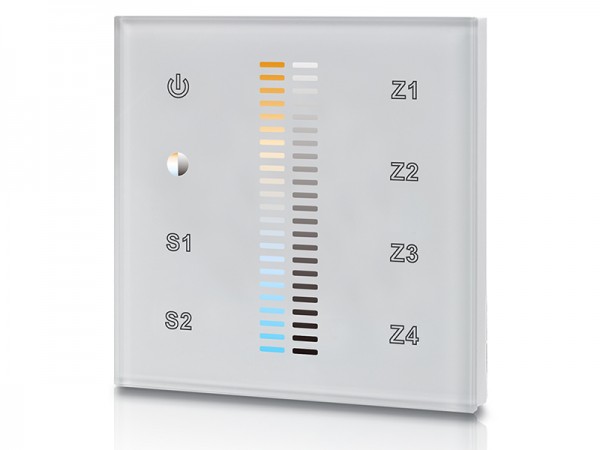

Dual color DMX512 master SR-2830BDMX is a full touch controller that complies with standard protocol DMX512(1990) and offers fast and accurate color temperature adjustment and independent brightness dimming of each white. Designed with touch color line in the middle, the DMX512 controller can adjust color temperature and brightness for warm white and cold white LEDs. Each controller can control 4 different zones separately or synchronously with endless decoders in each zone and 2 different kelvin or scenes can be saved for each zone. Independent smooth dimming of each white with 256 level brightness adjustment enables the DMX master to achieve millions of colors. Humanized memory function enables the controller to remember the last Kelvin after turn off or cut off. Humanization backlighting design enables the dual color controller to be found even in the dark.
Key Features
- Ultra sensitive high strength glass touch panel with touch color line in the middle and backlighting
- DMX signal output, complies with standard protocol DMX512(1990), and compatible with DMX decoders from any other suppliers
- Ideal for dual color LED lights warm white and cold white
- Control 4 different zones separately or synchronously with endless decoders in each zone
- Save 2 kelvins/scenes for each zone
- Enable to connect with warm white and cold white to achieve accurate adjustment of color temperature and brightness
- 256 level brightness adjustment for each white to achieve millions of color temperature
- Smooth dimming and switching without any flickering
- Humanized memory function to remember last Kelvin after turn off or cut off
- Backlighting design to be found even in the dark
- To work with power repeater to expand outpu unlimitedly
- Italian/Australian, American size optional
Specifications
Part No. | Operation Voltage | Output | Dimension (mm) |
SR-2830BDMX | 12-24VDC | DMX512 Signal | 86*86*41 |
SR-2830BDMX(IT) | 12-24VDC | DMX512 Signal | 120*80*41 |
SR-2830BDMX(US) | 12-24VDC | DMX512 Signal | 75*120*41 |

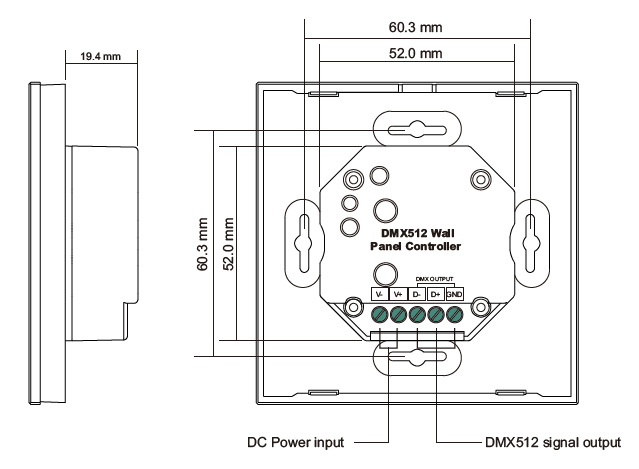

Product Dimension for SR-2830BDMX

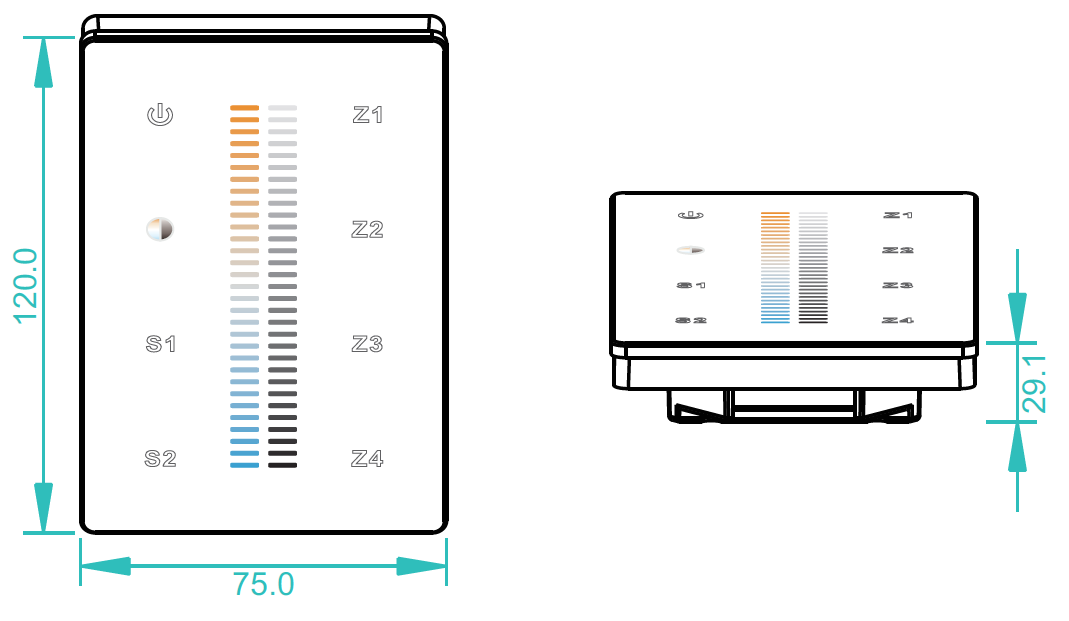

Product Dimension for SR-2830BDMXUS
Installation Diagram for SR-2830BDMX
Installation Diagram for SR-2830BDMXUS

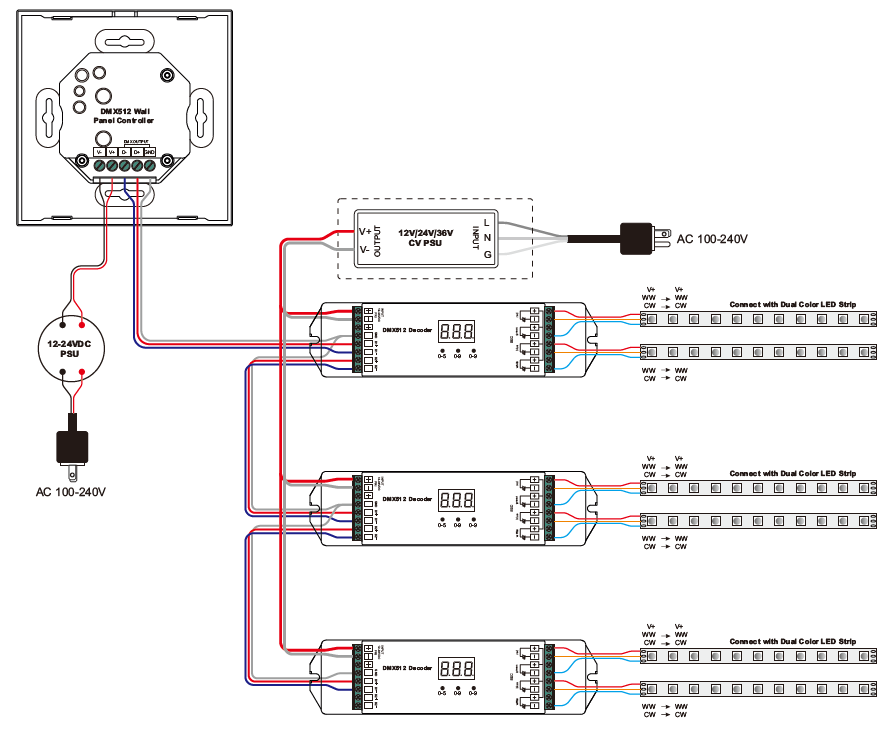

Wiring Diagram for SR-2830BDMX

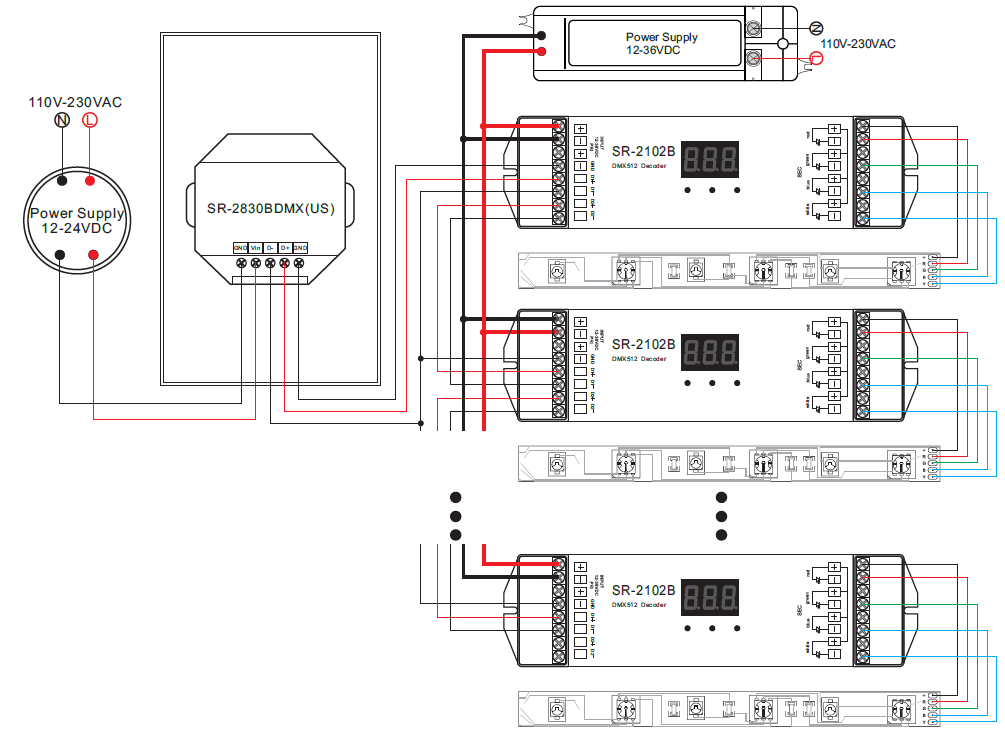

Wiring Diagram for SR-2830BDMXUS
