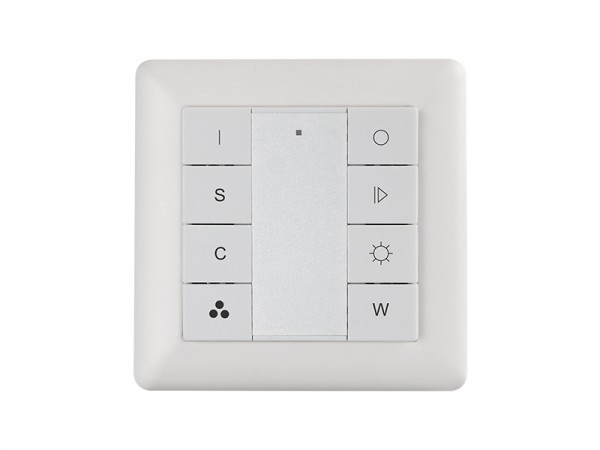

- Wall Mounted Push Button RF RGBW Controller SR-2853K8-RGBW
SR-2853K8-RGBW is a newly developed wall mounted RF RGBW LED controller with high end PC material push button design to offer accurate and fast RGB color tone adjustment, independent dimming control of each R, G, B, W channel and dynamic RGB color changing patterns. The LED controller is designed with humanization LED indicator to show working status. Compatible with SR-1009 series receivers, the RGBW controller can control RGB+W LED lighting with accurate and fast color tone adjustment, brightness adjustment and changing patterns. 1 zone can be controlled with endless receivers in each zone. Preset changing modes are available with pause function and 2 scenes can be saved for each zone. While receivers work with power repeaters, the power output can be expanded unlimitedly. The receivers can be WiFi controlled via APP installed on IOS or Android mobile devices while working with the WiFi-RF converter. The wall mounted dimmer switch is easy to install on the wall by 3M sticker.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2853K8-RGBW | 3VDC CR2032 battery | 434MHz/869.5MHz | 55.5*55.5*13 | RF Wireless |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 58*168*28 |
Receiver Wiring Diagram for Single Unit
Receiver Wiring Diagram for Multiple Units
Download Center
To know further details of this product, please download the following user manual.
SR-2853K8-RGBW User Manual
