- Ultra-Pro 6CH RDM DMX512 Decoder SR-2108B-M6-5/3
Product Description

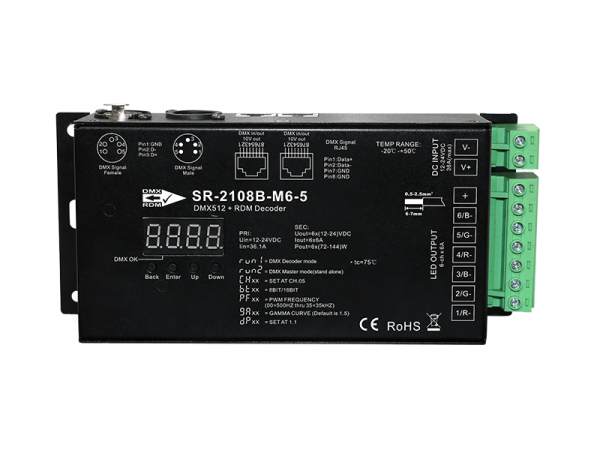

This Ultra-Pro 6CH RDM DMX512 Decoder is with master & decoder mode and RDM function. By virtue of metal housing and digital display, it can show data directly, and set and show DMX address easily. This deice is with multiple kinds of DMX in/out ports: RJ 45, XLR , normal screws. It has a total of 6 PWM output channels, and common anode. DMX channel quantity can be set as 1CH or 6CH. PWM output resolution ratio can be set as 8bit , 16 bit. With settable decoding mode, its output PWM frequency can be set from 500Hz to 35KHz, and the output dimming curve gamma value can be set from 0.1 to 9.9.
• Master & decoder mode, RDM function
• Metal housing, digital display to show data directly, easily to set and show DMX address
• With multiple kinds of DMX in/out ports: RJ 45, XLR , normal screws
• Total 6 PWM output channels, common anode. DMX channel quantity 1CH or 6CH settable
• PWM output resolution ratio 8bit , 16 bit settable.
• Output PWM frequency from 500Hz ~ 35KHz settable
• Output dimming curve gamma value from 0.1 ~ 9.9 settable
• Decoding mode settable.
• Galvanic isolation
Specifications
Part No. |
Input Voltage |
Output Current |
Output Power | Size(LxWxH) |
---|---|---|---|---|
SR-2108B-M6-5/3 |
12-24VDC |
6x6A |
6x(72-144)W |
187.7x85.3x41mm |

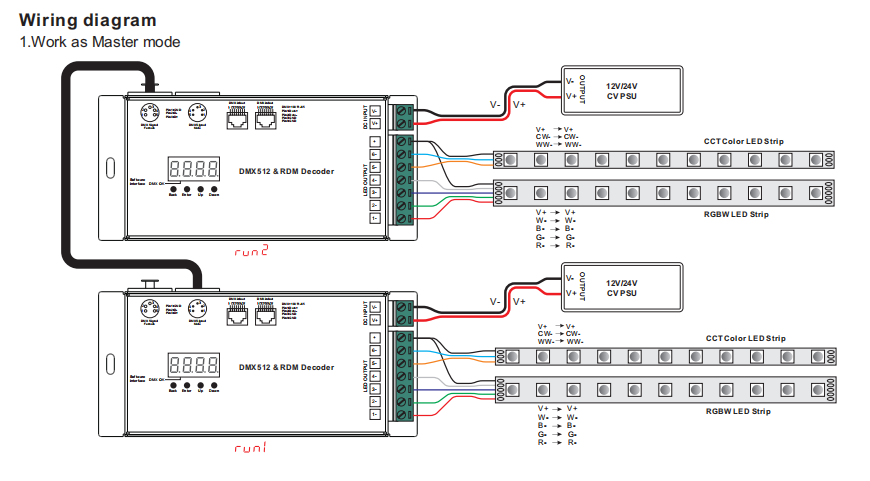

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2108B-M6-5-3-Instruction.pdf
