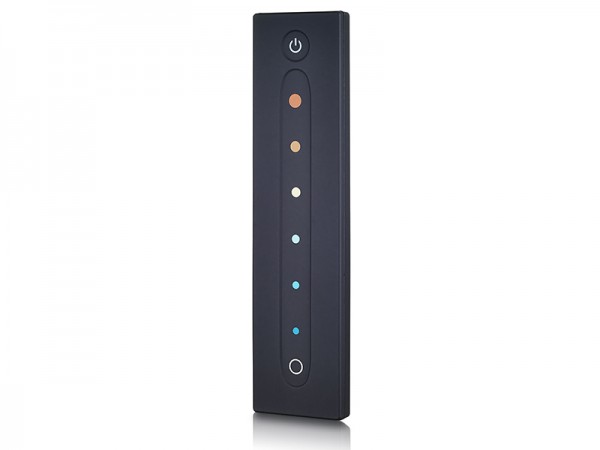

- Touch Control RF LED CCT Controller SR-2833TS-CCT
RF LED CCT controller SR-2833TS-CCT is a handheld remote control which features both color temperature adjustment and brightness adjustment functions for dual color LED lights (warm white and cold white). It designed with a touch slider that offers smooth and accurate color temperature adjustment. Each LED CCT controller can control 1 zone with endless receivers in each zone and all receivers can be controlled synchronously. 256 level smooth brightness adjustment for each white channel without any flickering can be very comfortable for human eyes. The CCT controller is compatible with SR-1009 series RF receivers which are available in both constant current and constant voltage versions to be compatible with different types of LED lighting. WiFi control function via APP installed on IOS or Android mobile devices is available while receivers are working with a WiFi-RF converter.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2833TS-CCT | 6VDC | 434MHz/869.5MHz/916.5MHz | 35*141*8.5 | Load 2pcs CR2025 batteries |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009fa | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |

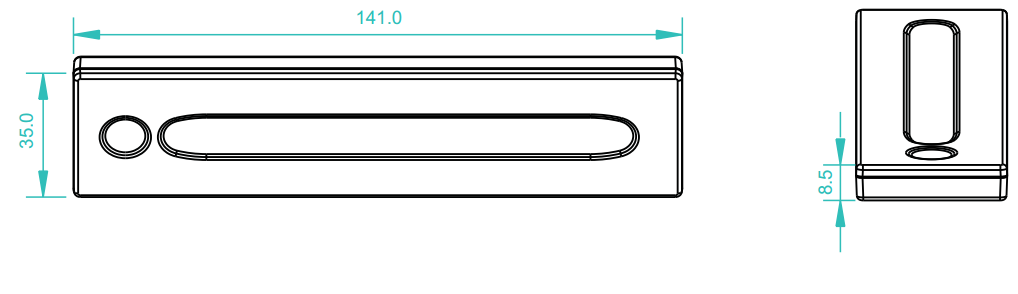

Product Dimension
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2833TS-CCT User Manual
