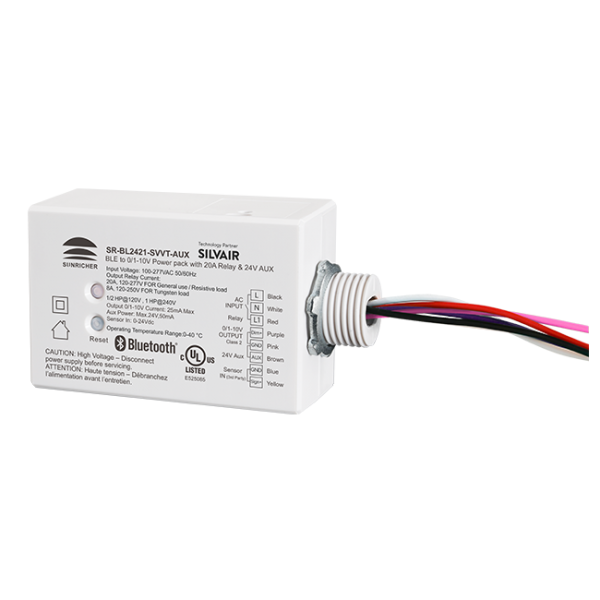

Silvair Bluetooth to 0/1-10V Power Pack with 20A Relay & 24V Aux SR-BL2421-SVVT-AUX

The Bluetooth to 0-10V signal converter integrates Bluetooth® mesh network technology, providing enhanced communication capabilities. It features a built-in 25mA 0-10V signal output, a 20A relay and 24V Auxiliary Power output which can power Casambi or third-party sensors. Additionally, the converter supports sensor input, allowing third-party sensors to be used for logic signal control of power packs or 0-10V loads. The mesh network design extends control range by transmitting signals to neighboring devices, offering a significantly longer control distance. All devices on the 0-10V line are controlled via broadcast using Silvair Commissioning tools. The device is compatible with Sunricher kinetic energy switches and EnOcean switches, including the EWSSB and EWSDB models. In typical outdoor environments, the wireless communication range reaches up to 65 meters, depending on field installation conditions. UL listed under Category PAZX (Management Equipment, Energy), it is UL 2043 Plenum Rated and features an IPEX antenna. With an IP20 waterproof rating, the product is designed for durability and comes with a 5-year warranty.

Key Features

• Bluetooth to 0-10V signal converter,Bluetooth® mesh network
• Built-in 25mA 0-10V signal output，with 20A relay
• Built-in Sensor input, allow to using 3rd party sensor in logic signal to control the power pack/0-10V Load.
• Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
• All devices on 0-10V line are broadcast controlled by Silvair Commissioning tools
• Supporting Sunricher kinetic energy switches and EnOcean switches EWSSB and EWSDB
• In typical outdoor environment, the range for wireless communication is about 65meters. Actual range is dependent on field installation
• UL listed, Category: PAZX (Management Equipment, Energy). UL 2043 Plenum Rated
• IPEX antenna
• Waterproof grade: IP20
• 5 years warranty
