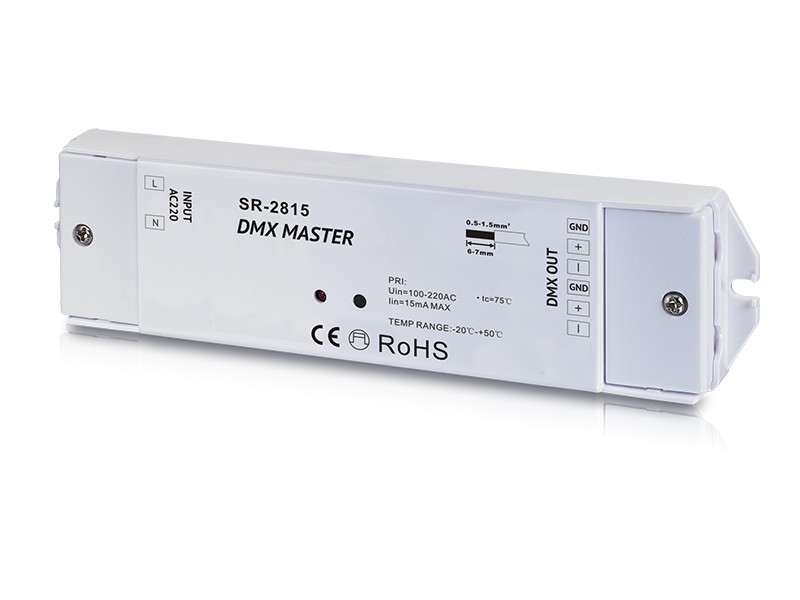

The DMX master SR-2815 is a DMX controller which receives RF signal from remote controllers and sends DMX512 signal to DMX decoders so that the DMX controller can be remote controlled. Easier and more convenient control can be achieved via this RF to DMX master matching with RF remote SR-2806, SR-2809 or SR-2804.
Key Features
- Ultra sensitive and high stable touch color wheel, fast and accurate color control
- Enable to control 10 zones separately. Each zone can switch on/off separately.
- Changing modes of 10 zones can be synchronized without any confusion.
- 10 changing modes. Enable to stay at any color under situation of color changing modes.
- Adjustable changing speed with 8 levels, quickest speed is 4S, slowest speed is 256S.
- Controlling RGBW or RGBY 4 colors that achieve more selectable colors than traditional RGB control.
- To adjust brightness of each color independently that can achieve millions of changing colors
- Match with SR-2806, SR-2809 or SR-2804.
- Humanization memory function to remember the last color/scene.
Specifications
Part No. | Input Voltage | Output | Dimension (mm) | Remarks |
SR-2815DMX1 | 100-220VAC | DMX512 Signal | 46*178*18 | Match with SR-2806 |
SR-2815DMX2 | 100-220VAC | DMX512 Signal | 46*178*18 | Match with SR-2804, SR-2809 |

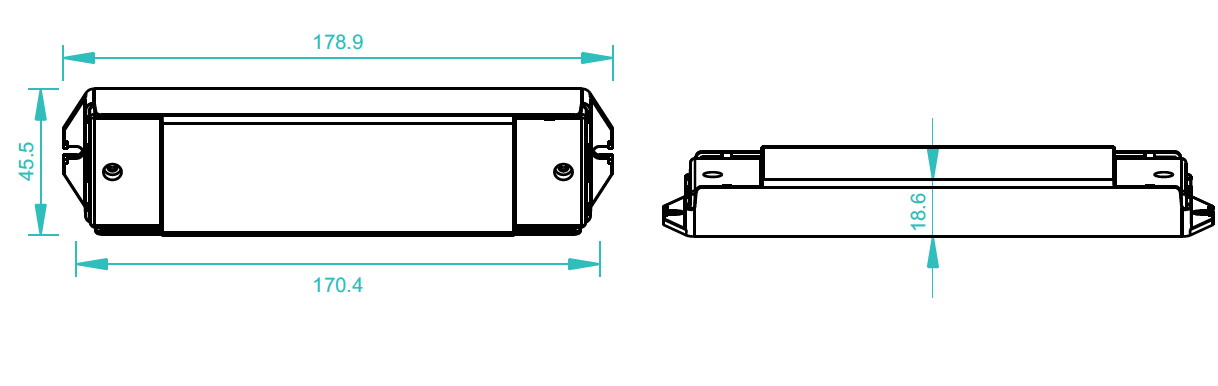

Product Dimension

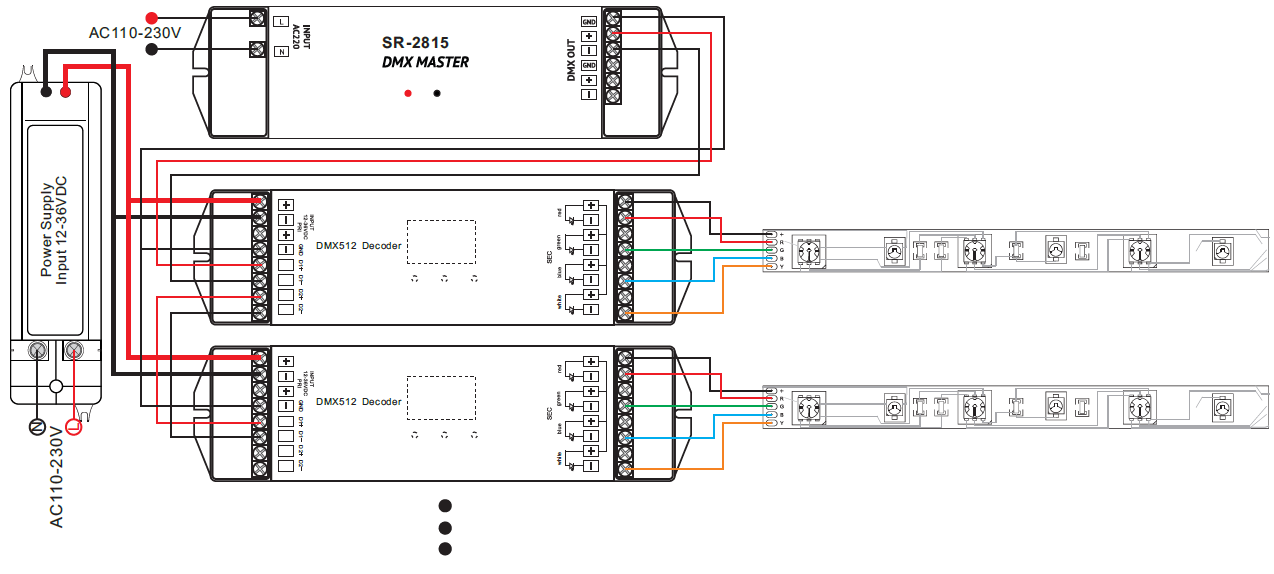

Wiring Diagram for Single Unit

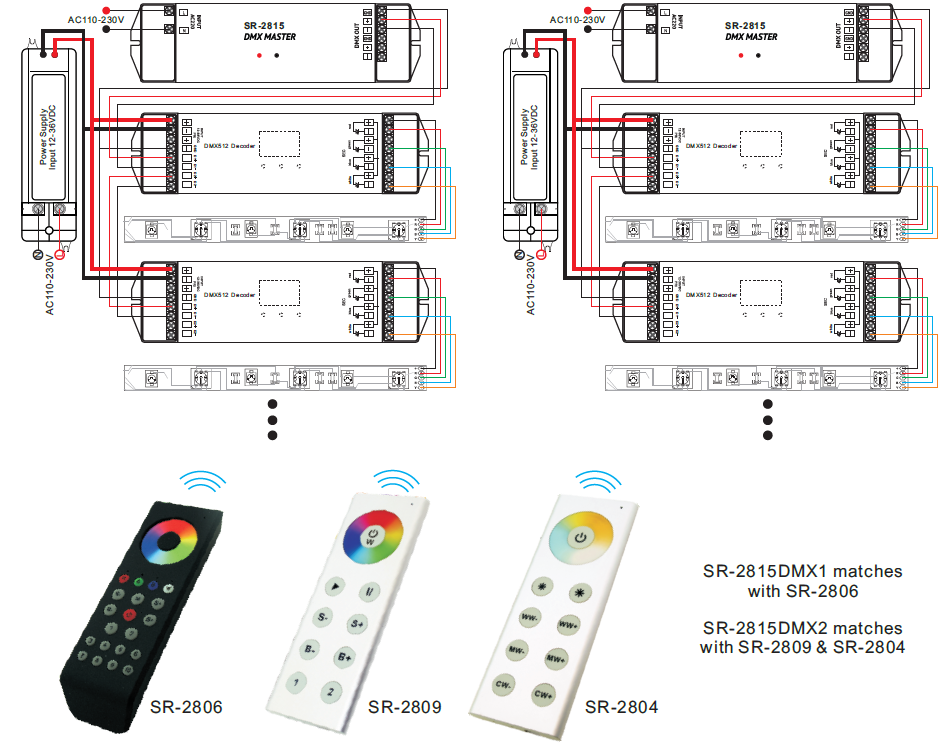

Wiring Diagram for Multiple Units
Download Center
To know further details of this product, please download the following user manual.
SR-2815 User Manual
