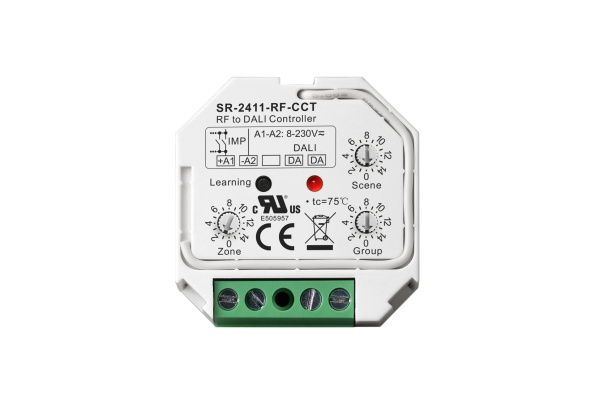

SR-2411-RF-CCT is a DT8 DALI group & scene controller that enables color tuning for tunable white LED lighting. It receives RF signal and can be controlled by RF remotes. The wireless DALI controller converts the RF signal to DALI. It is powered by DALI bus and no extra power supply required. In compliance with IEC 62386-102, IEC 62386-207, IEC62386-209, the group & scene controller enables color tuning via DALI specifications of device type 8 color type Tc, and can be compatible with universal DALI masters that support DT8 commands.
This controller enables to select and control designated DALI group and DALI secenes on DALI line. Rotary switches are used to set starting number of groups and scenes to be controlled.Total 16 groups and 16 scenes can be selected. It also can control all devices on DALI line via broadcast. Each DALI line can install multiple controllers for multi control points.
It is easy to pair the DALI wireless controller to a compatible RF remote with the learning key. It can be controlled by any zone of the paired RF remote by setting the zone rotary switch. Each controller can be paired to max. 8 different remotes.
Plus the group & scene controller is designed with PUSH interface, which enables it to be controlled by universal 8V-230V input single wire PUSH switch. It is also controllable while there is no RF remote.
While working with a WiFi-RF converter, the wireless receiver can also be WiFi controlled via APP installed on IOS or Android system.
Key Features
- RF to DALI DT8 Group & Scene Controller for tunable white
- Receives RF signal and outputs DALI signal to DALI line
- In compliance with IEC 62386-102, IEC 62386-207, IEC62386-209, enables color tuning via DALI specifications of device type 8 color type Tc, compatible with universal DALI masters that support DT8 commands
- DALI Bus Powered
- Can be controlled by RF remotes and compatible with a variety of CCT RF remotes
- Can be controlled by any zone of the paired RF remote by setting the zone rotary switch
- Can be controlled by universal 8V-230V input single wire PUSH switch
- Can be WiFi controlled while working with a WiFi-RF converter
- Enable to control 1 DALI Group of devices
- Enable to select and control designated DALI group (0-15)
- Enable to control all devices on DALI line via broadcast
- Enable to select and control designated DALI scenes (0-15)
- The number of DALI Scenes to be controlled depends on the paired RF remote
- Each DALI line can install multiple controllers for multi control points
