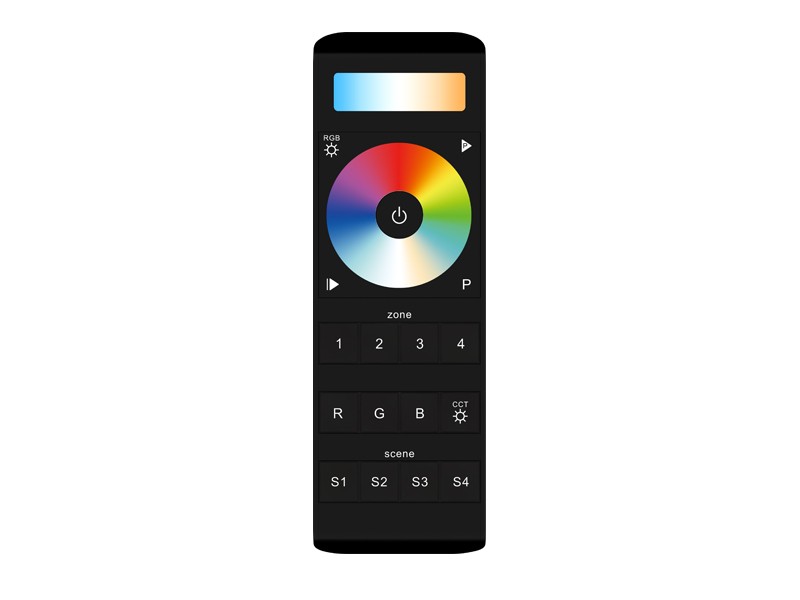

- Programmable 5 Channel RGB&CCT RF Remote Controller SR-2858Z4-5C
The RF remote controller SR-2858Z4-5C is the latest innovation which enables 5 channel control of RGB and dual color (warm white and cold white) as well as programmable function. The RGB+CCT LED controller is designed with sleek streamline appearance and high end PC material, which looks like an attractive artwork. The RF controller works with SR-1009EA-5C 5 channel receiver to offer amazingly smooth RGB color tone and color temperature adjustment functions. The ultra sensitive tempered glass RGB touch color wheel enables accurate and fast color tone adjustment and the brightness of each R, G, B, CCT channel can be adjustable independently to mix millions of colors. The LED controller can control 4 zones separately or synchronously with endless receivers in each zone. Pattern changing can be synchronized to ensure consistent change forever. The touch controller enables programmable function by choosing colors (maximum 5 colors) and touch the "P" key. 4 running modes including jump, flash, fade and strobe are available for the programmed colors. 4 scenes can be saved for each zone if you do not like the preset modes. Receivers can be WiFi controlled via APP installed on IOS or Android mobile devices after working with WiFi-RF converter.
Key Features

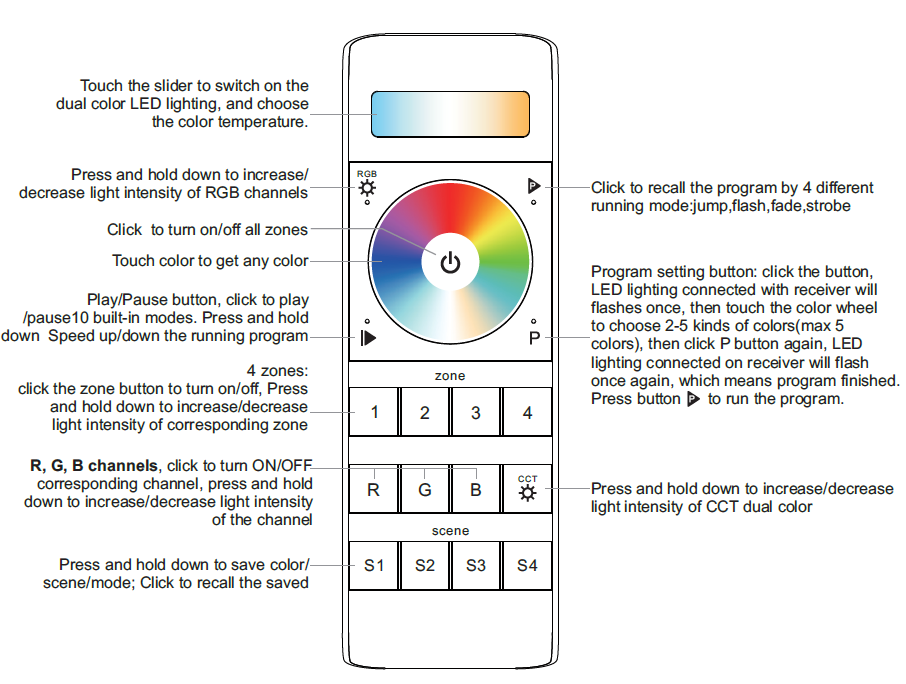

Function Introduction
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2858Z4-5C | 4.5VDC | 434MHz/869.5MHz/916.5MHz | 52*153*19 | RF Wireless |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009EA-5C | 12-36VDC | 5CH, 8A/CH | 480-1440W | Constant Voltage | 59*170*29 |

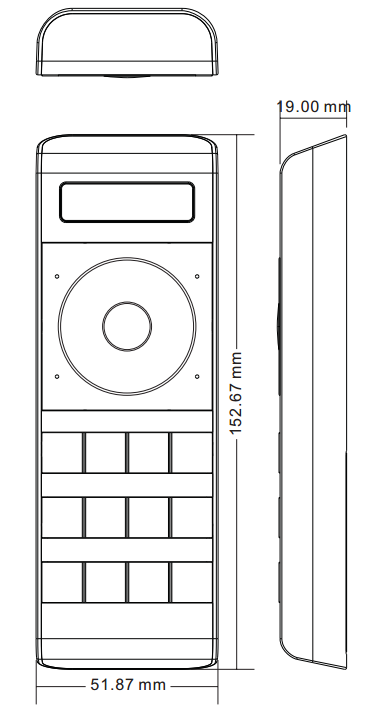

Product Dimension
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2858Z4-5C User Manual
