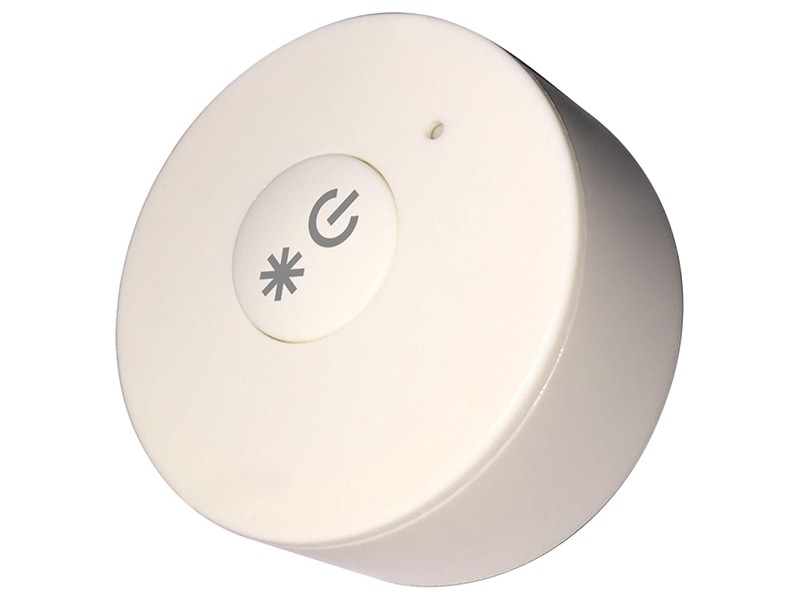

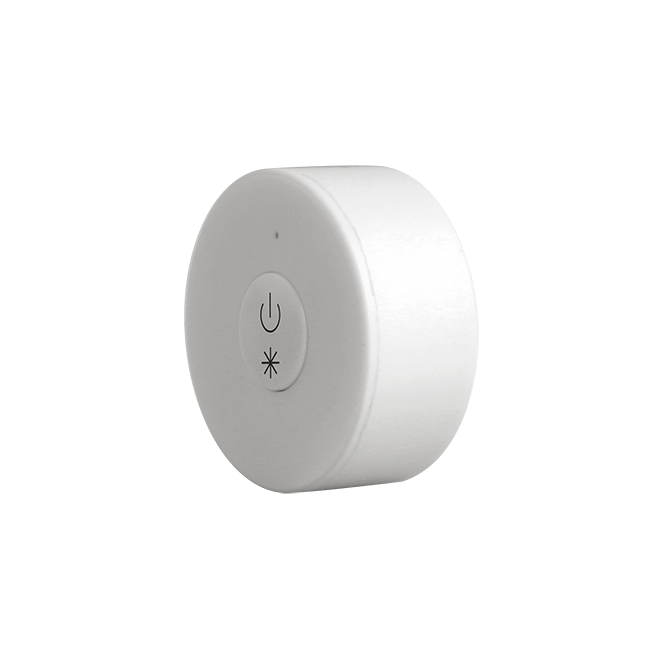

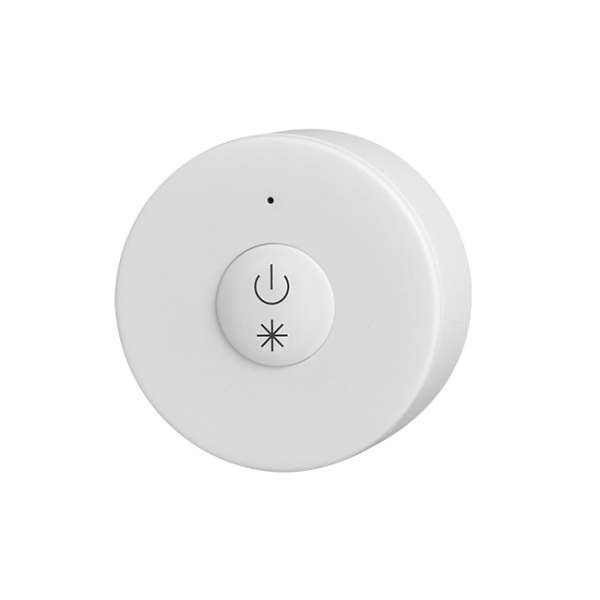

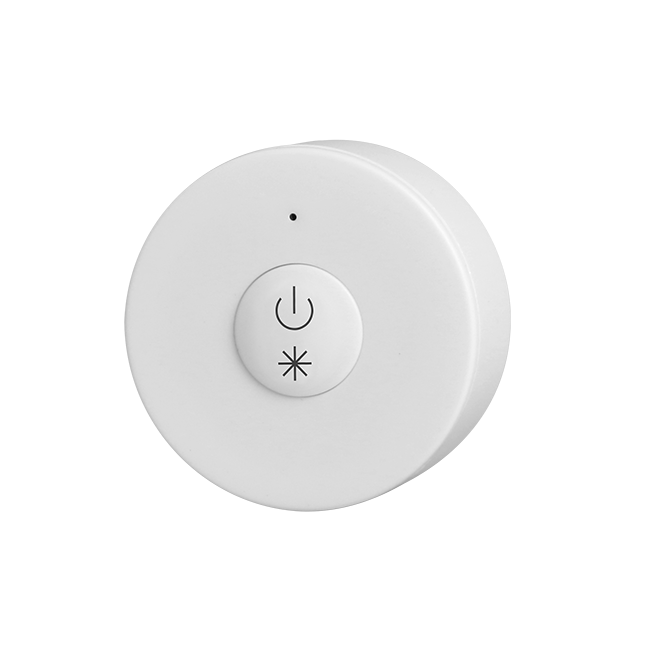

- Portable Mini RF LED Dimmer SR-2833S
RF LED dimmer SR-2833S is a portable mini LED controller which offers both switching and dimming control functions with 0.1%-100% dimming range via 256 level logarithmic dimming which features smooth dimming without any flickering. It is designed with magnet on the back which can be easily stuck on any metal surfaces. This portable dimmer can control 1 zone with endless receivers in each zone.
Key Features

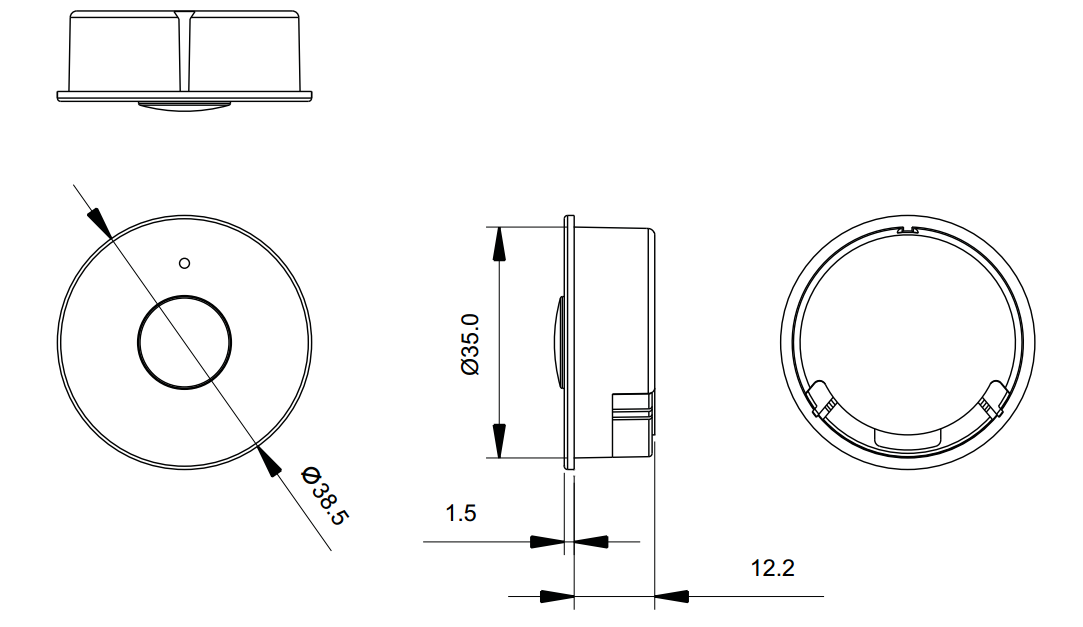

Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2833S | 3VDC | 434MHz/869.5MHz/916.5MHz | D32.2*H12 | Battery CR2025 |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-1009CS | 12-36VDC | 1CH, 8A/CH | 96-288W | Constant Voltage | 33*82*20 |

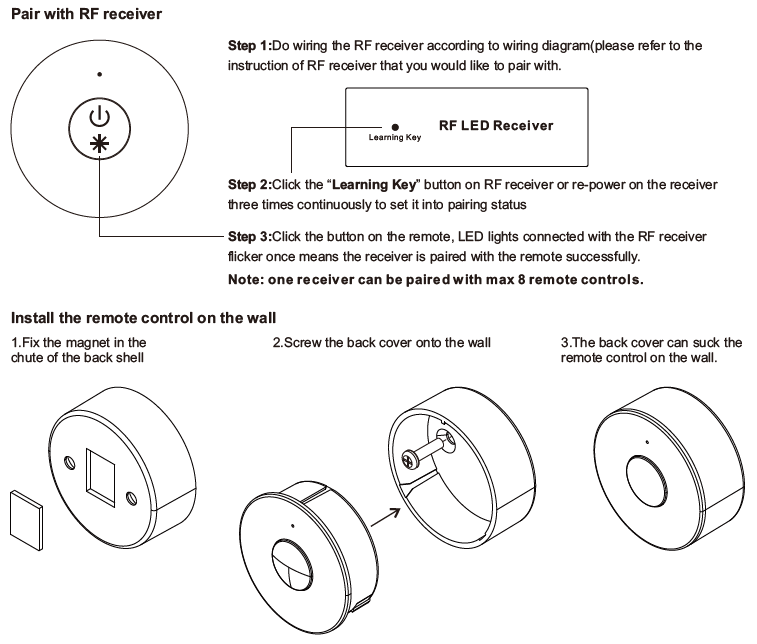

Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2833S User Manual
