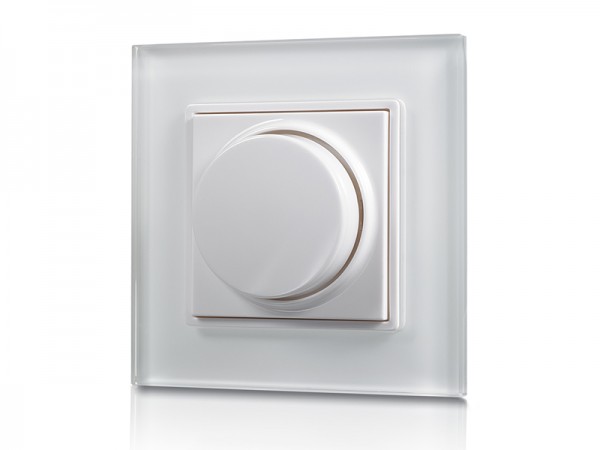

- Monochrome RF Rotary LED Controller SR-2835DIM
RF LED controller SR-2835DIM is a monochrome rotary controller which can control single color LED lighting with smooth switching and dimming functions. This rotary controller can control 1 zone with endless receivers in each zone. 256 level brightness adjustment of each channel ensures smooth and accurate dimming without any flickering. The wall mounted controller can control 1 zone with endless receivers in each zone and all receivers can be controlled synchronously. It is compatible with SR-1009 series RF receivers which are available in both constant current and constant voltage versions to be compatible with different types of LED lighting. WiFi control function via APP installed on IOS or Android mobile devices is available while receivers are working with a WiFi-RF converter.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2835DIM | 3VDC | 434MHz/869.5MHz | 86*86*27 | RF Wireless |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
Installation
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2835DIM User Manual
