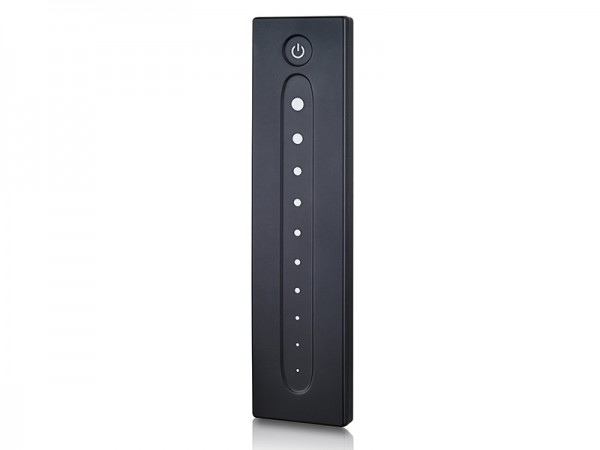

- Monochrome Remote RF LED Controller SR-2833TS
SR-2833TS is remote RF LED controller for monochrome LED lighting which controls 1 zone with dimming range from 0.1%-100%. The rf controller features ultra sensitive touch control, smooth dimming without any flickering and a control distance of over 20 meters. The touch slider with 256 level logarithmic dimming enables the dimmer to adjust brightness smoothly without any flickering which can be very comfortable for human eyes. Each dimmer can control one zone with endless receivers in each zone synchronously. The monochrome controller is compatible with SR-1009 series RF receivers that are available in both constant voltage and constant current version to control different types of LED lighting.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2833TS | 6VDC | 434MHz/869.5MHz/916.5MHz | 35*141*8.5 | Load 2pcs CR2025 batteries |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |

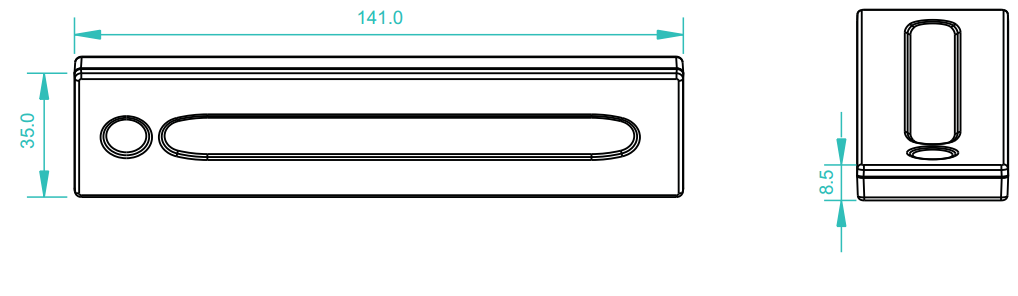

Product Dimension

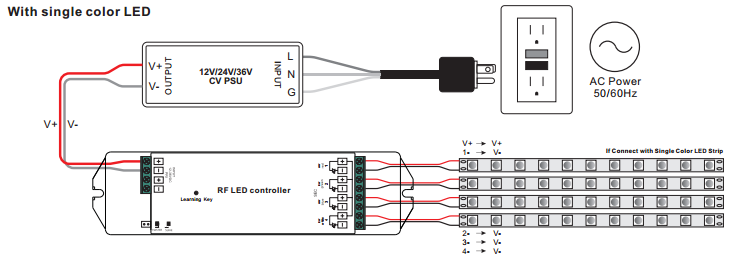

Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2833TS User Manual
