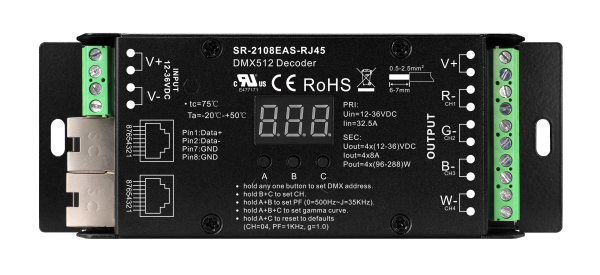

SR-2108EAS-RJ45 is a 4 channels constant voltage DMX & RDM controller that supports real 16 bit PWM resolution. The DMX controller is designed with both master mode and slave mode which are easy to switch. It features full support to the latest DMX512, DMX512(1990), DMX512-A and RDM V1.0 (E1.20 – 2006 ESTA Standard) protocols. The DMX decoder is designed with 4 channels, 8A per channel constant voltage output and available in 12VDC, 24VDC and 36VDC. The DMX controller is designed with easy wiring terminals that do not require screws.
Key Features
- Standard DMX512 compliant control interface.
- Support RDM.
- 4 PWM output channels, common anode.
- DMX address manually settable.
- DMX channel quantity from 1CH~4CH settable.
- Output PWM frequency from 200HZ ~ 35K HZ settable.
- Output dimming curve gamma value from 0.1 ~ 9.9 settable.
- To work with power repeater to expand output power unlimitedly.
- Waterproof grade:IP20.
