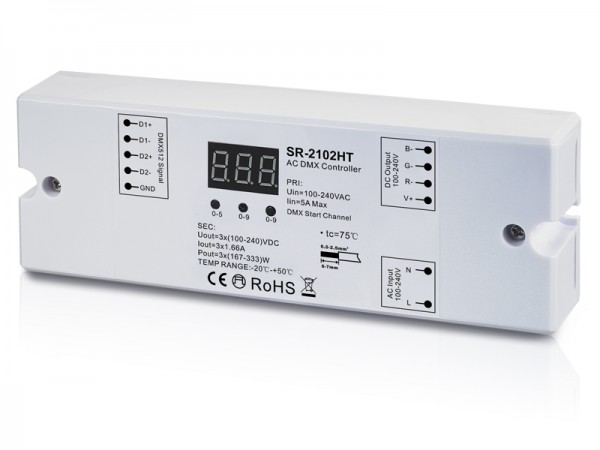

The SR-2102HT is a 3 channel AC high voltage DMX512 controller designed for RGB high voltage LED strip. The LED strip DMX512 controller comes with 100-240VAC wide input and DC100-240V output, which can be perfect to control high voltage LED strip and total output can be up to 1,000W. Sunricher patented high volt control technology ensures smooth dimming and RGB color tone adjustment without any flickering. Both master mode and slave mode are available for this DMX512 controller and easy to switch between the two modes. While under slave mode, the LED strip controller works as a decoder which can be compatible with a variety of RGB DMX512 master controllers. While under master mode, the DMX512 controller works as a master controller that controls via the buttons and numeric digital display. Waterproof version is available with IP67 rating which enables the high volt LED strip controller to be used in outdoor and damp environment.
Key Features
- Leading Global High Voltage RGB DMX512 LED Controller
- Master Mode and Slave Mode Switchable
- 100-240VAC Wide Input and 100-240VDC Output
- 3 Channels, Total 5A Output
- Up to 1000W Output
- Patented High Voltage Control Technology, More Stable and Reliable Than Competitors’
- Perfect to Control High Voltage LED Strip
- Smooth and Accurate Brightness and RGB Color Tone Adjustment without Flickering
- Compatible with A Variety of RGB DMX512 Masters Under Slave mode
- Manual control via buttons and digital display under master mode
- Waterproof Version Available with IP67 Rating
Specifications
Part No. | Input Voltage | Output Current | Output Voltage | Output Power | Dimension (mm) |
---|---|---|---|---|---|
SR-2102HT | 100-240VAC | 3CH, 1.66A/CH | 100-240VDC | 500W@100V 1200W@240V | 59*170*29 |
Product Dimension

Wiring Diagram

Download Center
To know further details of this product, please download the following user manual.
SR-2102HT User Manual
