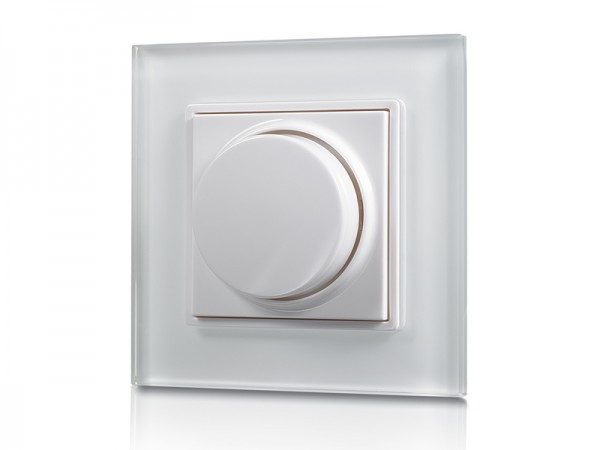

- Dual White RF Rotary LED Controller SR-2835CCT
RF LED controller SR-2835CCT is a dual color rotary controller which can control dual white LED lighting (warm white and cold white) with both color temperature adjustment and dimming for each white functions. This rotary controller can control 1 zone with endless receivers in each zone. 256 level brightness adjustment of each channel ensures smooth and accurate dimming without any flickering and millions of colors can be achieved. The wall mounted controller can control 1 zone with endless receivers in each zone and all receivers can be controlled synchronously. It is compatible with SR-1009 series RF receivers which are available in both constant current and constant voltage versions to be compatible with different types of LED lighting. WiFi control function via APP installed on IOS or Android mobile devices is available while receivers are working with a WiFi-RF converter.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2835CCT | 3VDC | 434MHz/869.5MHz | 86*86*27 | RF Wireless |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
Installation
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2835CCT User Manual
