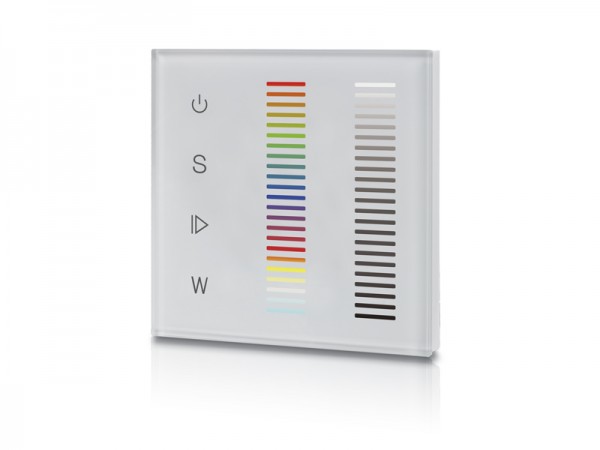

SR-2834RGBW-DMX is a full touch RGBW DMX LED controller designed with dual touch sliders which offer fast and accurate RGB color tone adjustment and independent brightness dimming of RGB channel and W channel. Designed with dual touch sliders, one for RGB color tone adjustment and the other for brightness adjustment of RGB channel, the touch controller can control RGB color and RGB brightness respectively without having to switch. W channel can be controlled independently by the "W" key, thus RGB channels and W channel can be controlled separately without any confusion. Each controller has 4 DMX channels to control 1 zone of RGBW LED lighting and up to 3 different colors or scenes can be saved for each zone. 10 built-in color changing effects are available with pause function. LED indicators for back lighting enable users to find the controller easily even in the dark. Standard European size and American size are optional.
Key Features
- Ultra slim ultra sensitive high strength glass touch panel with double touch sliders and back lighting
- Ideal for RGB+W LED lighting, standard DMX signal output
- Dual touch sliders, one for RGB color tone adjustment and the other for brightness adjustment of RGB channels
- Control RGB color and RGB brightness respectively without having to switch
- Each controller has 4 DMX channels to control 1 zone of RGBW LED lighting
- Compatible with universal DMX decoders
- Save up to 3 colors/scenes for each zone
- RGB channels and W channel can be controlled separately without any confusion
- 10 built-in color changing effects are available with pause function
- LED indicators for back lighting enable users to find the controller easily even in the dark
- Standard European size, American size optional
Remote
Part No. | Operation Voltage | Output | Dimension (mm) | Remarks |
SR-2834RGBW-DMX | 12-24VDC/100-230VAC | DMX Signal | 86*86*29.1 | RF Wireless |
SR-2834RGBW-DMX (US) | 12-24VDC/100-230VAC | DMX Signal | 120*75*29.5 | RF Wireless |
Product Dimension for SR-2834RGBW-DMX
Product Dimension for SR-2834RGBW-DMX (US)
Installation Diagram for SR-2834RGBW-DMX
Installation Diagram for SR-2834RGBW-DMX (US)
Controller Wiring Diagram for SR-2834RGBW-DMX
Controller Wiring Diagram for SR-2834RGBW-DMX (US)
