- Dual Color Rotary RF LED Controller SR-2836CCT

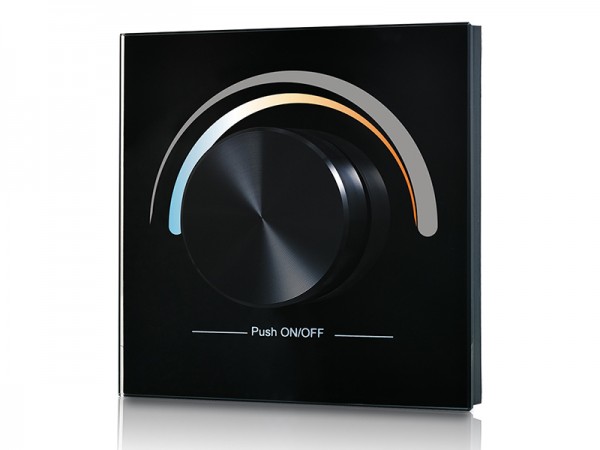

Rotary dual color LED controller SR-2836CCT is a RF wall mounted control with switch, color temperature and brightness adjustment functions for dual color (warm white and cool white) LEDs. The rotary dimmer controller features accurate and smooth color temperature adjustment as well as dim your lights from 0.1% to 100% without any flickering. Double clicking the rotary knob enables the controller to switch from brightness dimming to color temperature adjustment. Each controller can control 1 zone with endless receivers. Available in standard Europe size and US size as well, the dimmer can be suitable for electric wall boxes from different areas.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2836CCT | 3VDC | 434MHz/869.5MHz | 86*86*41 | RF Wireless |
SR-2836CCT(IT) | 3VDC | 434MHz/869.5MHz | 120*80*41 | RF Wireless |
SR-2836CCT(US) | 3VDC | 916.5MHz | 75*120*41 | RF Wireless |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
Installation
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2836CCT User Manual
SR-2836CCT(US) User Manual
SR-2836CCT(IT) User Manual
