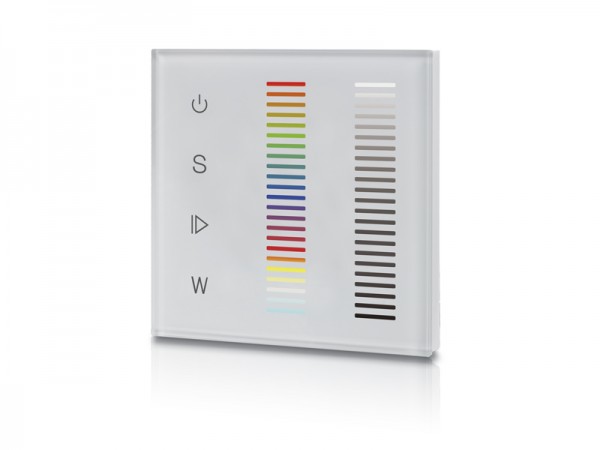

- Double Touch Slider RGBW LED Controller SR-2834RGBW
SR-2834RGBW is a full touch RGBW LED controller designed with double touch sliders which offer fast and accurate RGB color tone adjustment and independent brightness dimming of RGB channel and W channel. Designed with double touch sliders, one for RGB color tone adjustment and the other for brightness adjustment of RGB channel, the touch controller can control RGB color and RGB brightness respectively without having to switch. W channel can be controlled independently by the "W" key, thus RGB channels and W channel can be controlled separately without any confusion. Each controller can control 1 zone with endless receivers in each zone and up to 3 different colors or scenes can be saved for each zone. 10 built-in color changing effects are available with pause function. LED indicators for back lighting enable users to find the controller easily even in the dark. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems. Standard European size and American size are optional.
Key Features
Function Introduction
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2834RGBW | 12-24VDC/100-230VAC | 434MHz/869.5MHz | 86*86*29.1 | RF Wireless |
SR-2834RGBW(US) | 12-24VDC/100-230VAC | 916.5MHz | 120*75*29.5 | RF Wireless |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009EA | 12-36VDC | 5CH, 8A/CH | 480-1440W | Constant Voltage | 59*170*29 |
Product Dimension for SR-2834RGBW
Product Dimension for SR-2834RGBW(US)
Installation Diagram for SR-2834RGBW
Installation Diagram for SR-2834RGBW(US)
Controller Wiring Diagram for SR-2834RGBW
Controller Wiring Diagram for SR-2834RGBW(US)
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2834RGBW User Manual
SR-2834RGBW(US) User Manual
