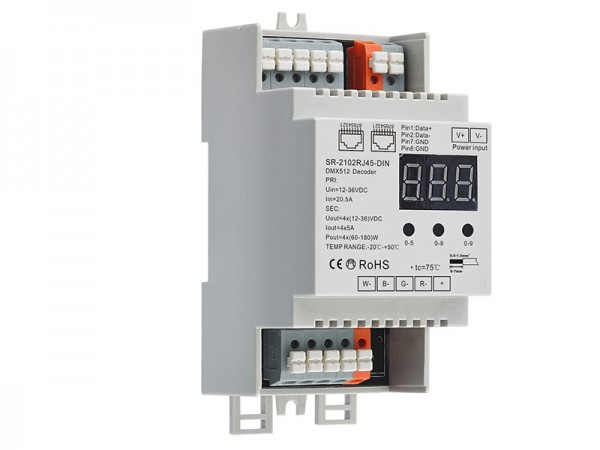

The SR-2102RJ45-DIN is a din rail mounted DMX512 decoder designed with RJ45 port which could be connected to WIFI & bluetooth signal, could be RF remote controlled or IOS/Android programmed by WIFI through a DMX master SR-2817dmx or SR-2816, the DMX decoder can be switched between 3 channel or 4 channel output. Output current up to 5A per channel. DMX address can be set freely and shown on the numeric digital display. The din rail mounted DMX512 decoders can be compatible with our DMX masters such as SR-2811DMX, SR-2201DMX, SR-2812, SR-2816 and others.
Key Features
- Din rail mounted DMX512 decoder
- DMX512 compliant control interface, DMX address can be set freely and shown on the digital numeric display
- Three-channel / Four-channel output selectable
- 5A per channel output
- Compatible with our DMX masters such as SR-2811DMX, SR-2201DMX, SR-2812, SR-2816 and others
- To work with power repeater to expand output unlimitedly
Specifications
Part No. | Input Voltage | Output Current | Output Power | Output Type | Dimension (mm) | Remarks |
---|---|---|---|---|---|---|
SR-2102RJ45-DIN | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 65*106*53 | RJ45 |
Product Dimension

Wiring Diagram

Coming soon
Download Center
To know further details of this product, please download the following user manual.
SR-2102RJ45-DIN User Manual
