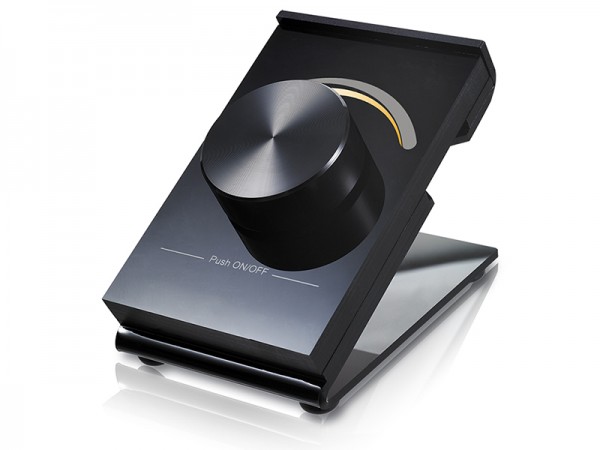

SR-2836DCCT is a desk mount RF wall mounted control with switch, color temperature and brightness adjustment functions for dual color (warm white and cold white) LED lighting. The rotary dimmer controller features accurate and smooth color temperature adjustment as well as dim your lights from 0.1% to 100% without any flickering. Double clicking the rotary knob enables the controller to switch from brightness dimming to color temperature adjustment. Each controller can control 1 zone with endless receivers. Table lying design requires no complicate installation.
- RF rotary control with switch, color temperature and brightness adjustment functions for dual color (warm white and cold white) LED lighting.
- Reliable and stable switch and dimming control function, control range up to 20M.
- Battery in the remote is with long life span. It normally can use for 5 years.
- Switch on/off of lighting slowly, without any flash, meet the comfort of human eyes.
- Dimming range 0.1-100%.
- Double clicking the rotary knob enables the controller to switch from brightness dimming to color temperature adjustment.
- Receivers can with power repeater to expand the output power unlimitedly.
- Enable to control 1 zones separately, each zone can be set endless receivers, each receiver maximally be controlled by 8 different remotes.
- Rotary adjustment, table lying design requires no complicate installation
|Part No.||Operation Voltage||Operation Frequency||Dimension (mm)||Remarks|
|Part No.||Input Voltage||Output Current||Output Power||Output type||Dimension (mm)|
|SR-1009FA||12-36VDC||4CH, 5A/CH||240-720W||Constant Voltage||46*178*18|
|SR-1009EA||12-36VDC||4CH, 8A/CH||384-1152W||Constant Voltage||58*168*28|
|SR-1009FA3||12-36VDC||4CH, 0.35A/CH||16.8-50.4W||Constant Current||46*178*18|
|SR-1009FA7||12-36VDC||4CH, 0.7A/CH||33.6-100.8W||Constant Current||46*178*18|
Installation for SR-2836DCCT
Receiver Wiring Diagram
To know further details of this product, please download the following user manual.
SR-2836DCCT User Manual
