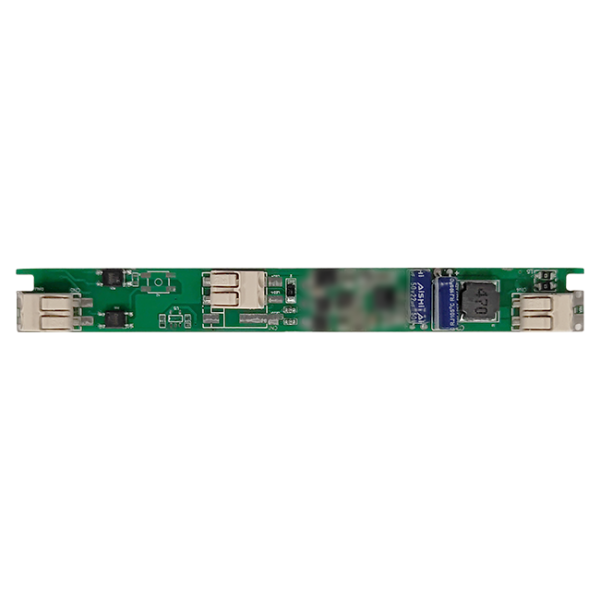

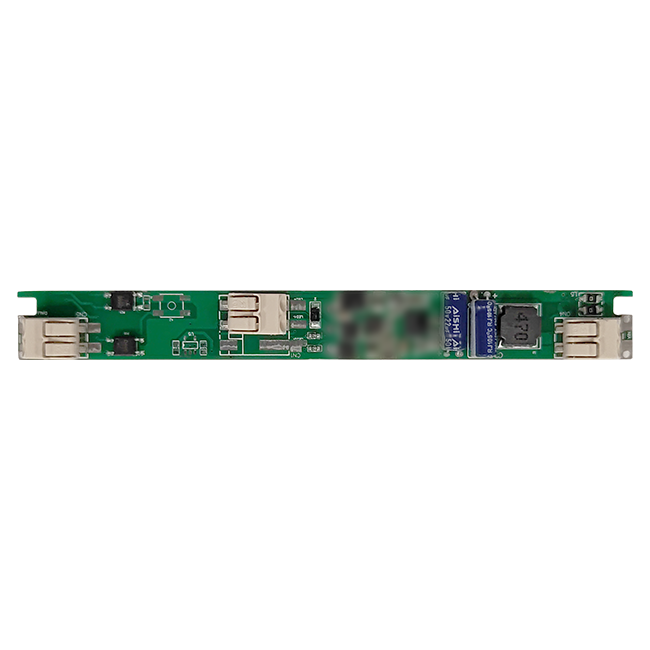

DALI DT6 LED Driver with Terminal for Magnet Track Light SRP-2305-MT-48VCC100-700T

This super-slim DALI DT6 LED controller with terminal is specially designed for magnetic track lighting and linear lighting systems, combining a compact form factor with reliable lighting control. Featuring a 48V DC input and a single-channel constant current output adjustable from 100mA to 700mA via DIP switches, it delivers up to 28W total output power. The built-in DALI-2 interface enables seamless integration with DALI lighting control systems, while deep, smooth, flicker-free dimming down to 0.1% ensures precise light adjustment. Its magnetic absorption mounting design allows convenient installation, with quiet operation free from high-frequency interference noise. Compliant with IEC 62386-101, IEC 62386-102, and IEC 62386-207 Ed. 2, this controller is compatible with DALI systems on the market, making it a versatile solution for modern magnetic track and linear lighting applications.

Key Features

• Super slim design DALI DT6 LED controller
• Special design for magnet track light and linear lighting
• Magnet absorption installation application, no high frequency interference sound
• DC48V input, max. output power 28W total
• 1 channel 100-700mA constant current output, dips to select multi operation current
• Deep and smooth dimming to 0.1%, flicker free
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
• Built-in DALI-2 interface, DALI DT6 device
• Match all DALI systems in the market
• Waterproof grade:IP20
• 5 years warranty
