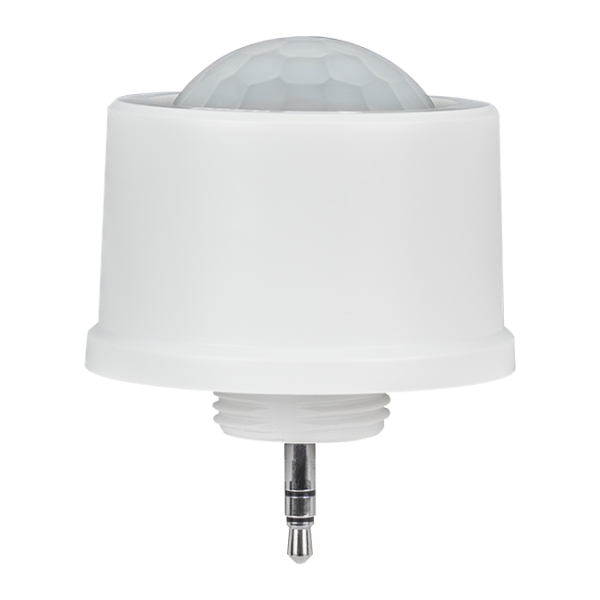

Casambi Wireless IP65 Motion Sensor with 3.5mm Audio-Jack Interface SR-CS9033J-PIR-V

The IP65 motion sensor combines presence sensing, daylight harvesting, 0-10V dimming and Casambi radio technology. The sensor can work with 0-10V dim-to-off LED drivers, and the luminaires just need to be connected to mains power. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes.

Key Features

• PIR motion detection
• Daylight harvesting
• Works with 0-10V dim-to-off drivers
• Autonomous sensor-based control
• Can be use for outdoor applications
• 3.5mm Audio-Jack interface (Plug & Play)

Specifications

Part No.	Power Supply	Input Signal	Output Signal	0-10V Signal Output	Sensor Type	Detection Range
SR-CS9033J-PIR-V	12-24VDC	Casambi Bluetooth	0-10V	Max. 20mA	PIR Sensor	φ17m@17m

Product Dimension

Dimension

Wiring Diagram

Wiring Diagram

Coming soon

Download Center

To know further details of this product, please download the following user manual.

SR-CS9033J-PIR-V User Manual
