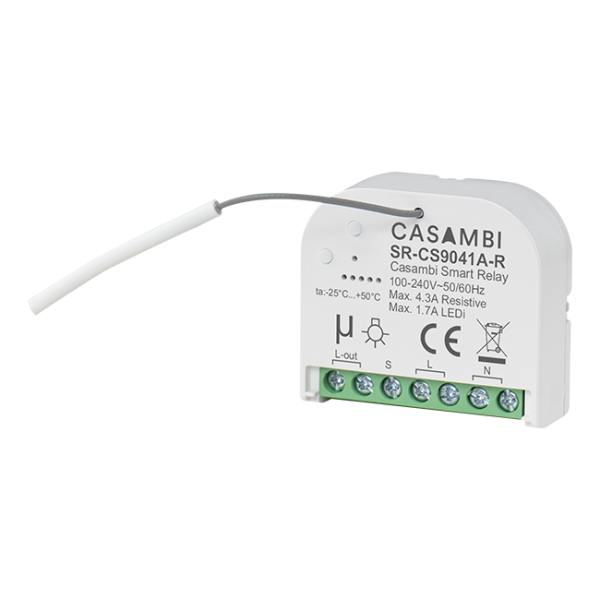

Casambi Smart Relay Module SR-CS9041A-R

This Casambi in-wall smart relay module features a compact design that fits standard wall boxes and supports resistive, capacitive, and inductive loads with a max relay output of 4.3A. It includes one push-button input and screw terminals for safe and reliable wiring. The module enables ON/OFF control of connected lights via the Casambi app, remotes, wall switches, and kinetic switches, with a typical indoor mesh range of over 50 meters.

Features

• Casambi in wall smart relay module
• Supports resistive loads, capacitive loads or inductive loads
• 1 channel relay output, max. load up to 4.3A, 1 channel push button input

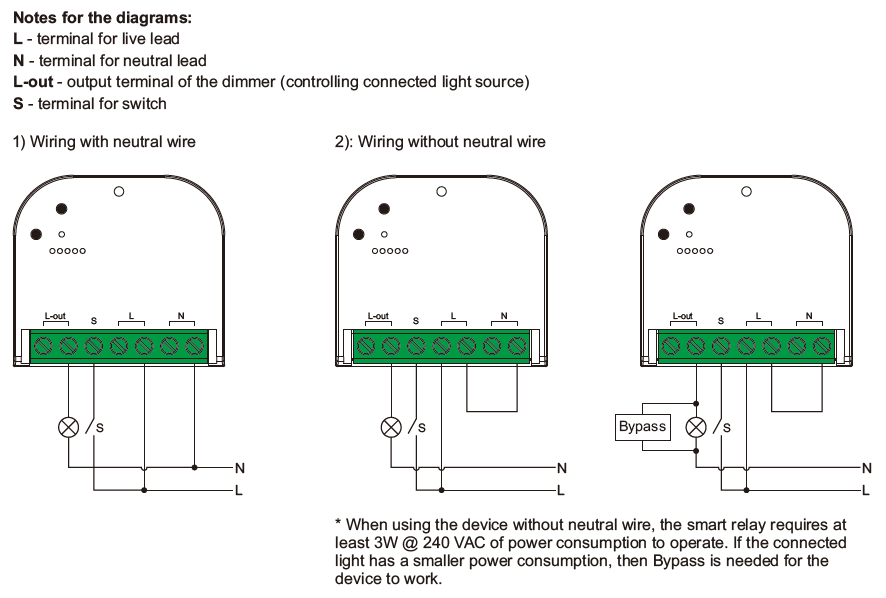

• Input and Output with Screw Terminals, Safe and Reliable
• Enables to control ON/OFF of connected light source
• Typical mesh range is over 50 meters line of sight for indoor environment
• The relay can be controlled by Casambi app, remotes, wall switches, kinetic switches, the push button input can be configured to control Casambi network wirelessly
• Mini Size, Easy to be Installed into a standard size wall box
