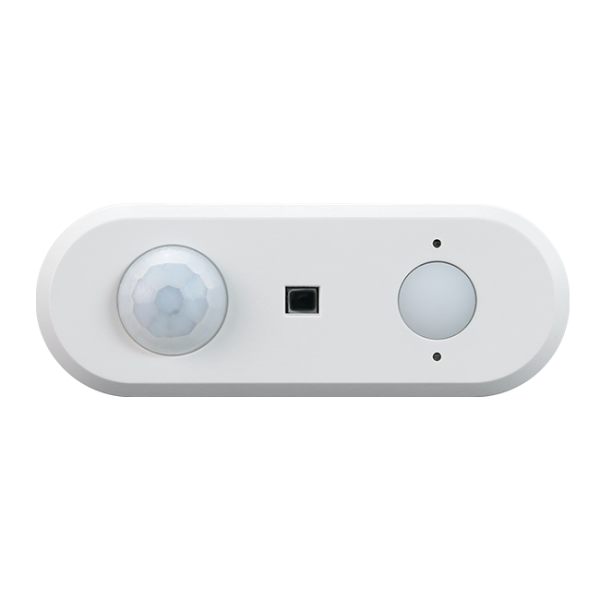

Casambi Wireless Fixture-Integrated PIR Sensor + Light Sensor + 0-10V Dimming SR-CS9035A-PIR-V

Product Description

The fixture-integrated sensor combines presence sensing, daylight harvesting, 0-10V dimming and Casambi radio technology. The sensor can work with 0-10V dim-to-off LED drivers, and the luminaires just need to be connected to mains power. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes.

Casambi Technology Explained

The Casambi technology provides a mesh network where all the intelligence of the system is replicated in every node and, in such a way, creates a system with no single point of failure. In this kind of fully distributed architecture, any unit can go offline and catch up from others when they return back online.

Key Features

• PIR motion detection
• Daylight harvesting
• Works with 0-10V dim-to-off LED drivers
• Autonomous sensor-based control
• Can be use for indoor applications

Specifications

Power Supply	Input Signal	Output Signal	Output, 0/1-10V Current	Sensor Type	Detection Range
12-24VDC	Casambi bluetooth	0-10V	Max. 20mA	PIR sensor	φ5m@2.5m

Wiring Diagram

Wiring Diagram

Coming soon

Download Center

To know further details of this product, please download the following user manual.

SR-CS9035A-PIR-V User Manual
