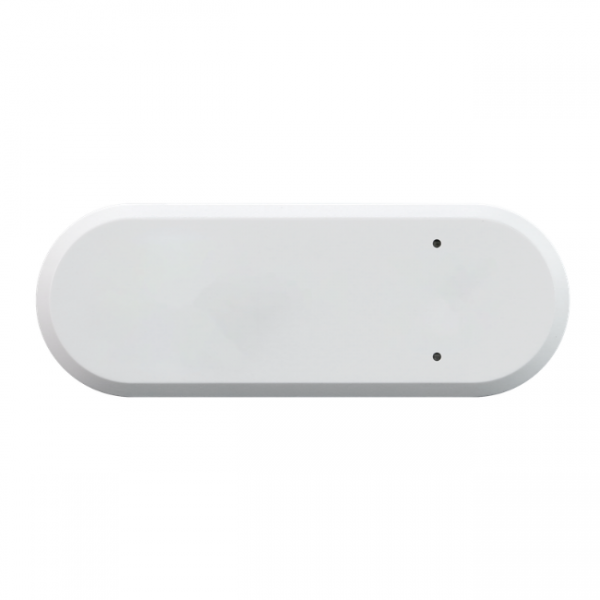

Casambi Wireless Fixture-Integrated 0-10V Sensorless Node SR-CS9035A-V

Product Description

The fixture-Integrated converter combines 0-10V dimming and Casambi radio technology into a small package that fits into various luminaires. When used with 0-10V dim-to-off LED drivers, it enables any lighting manufacturer to deliver wirelessly-controllable fixtures with minimal engineering effort. The luminaires just need to be connected to mains power.

Casambi Technology Explained

The Casambi technology provides a mesh network where all the intelligence of the system is replicated in every node and, in such a way, creates a system with no single point of failure. In this kind of fully distributed architecture, any unit can go offline and catch up from others when they return back online.

Key Features

• Works with 0-10V dim-to-off LED drivers
• Can be use for indoor applications

Specifications

Input Voltage	Current Consumption	Input Signal	Output Signal	Output, 0/1-10V Current	Note
12/24 VDC	< 30mA	Casambi bluetooth	Analog (0-10V)	Max. 20mA	Signal Converter

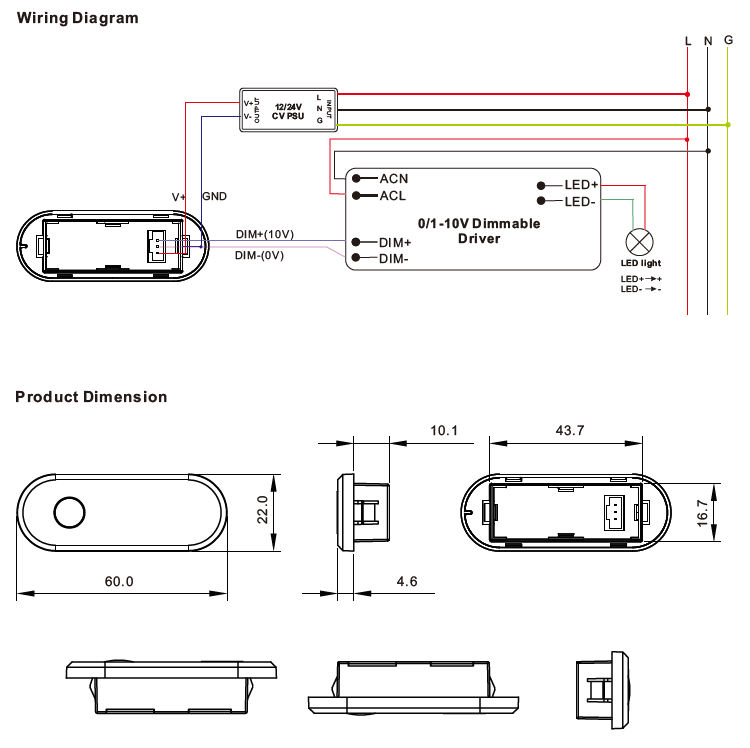

Product Dimension

Product Dimension

Coming soon

Download Center

To know further details of this product, please download the following user manual.

SR-CS9035A-V User Manual
