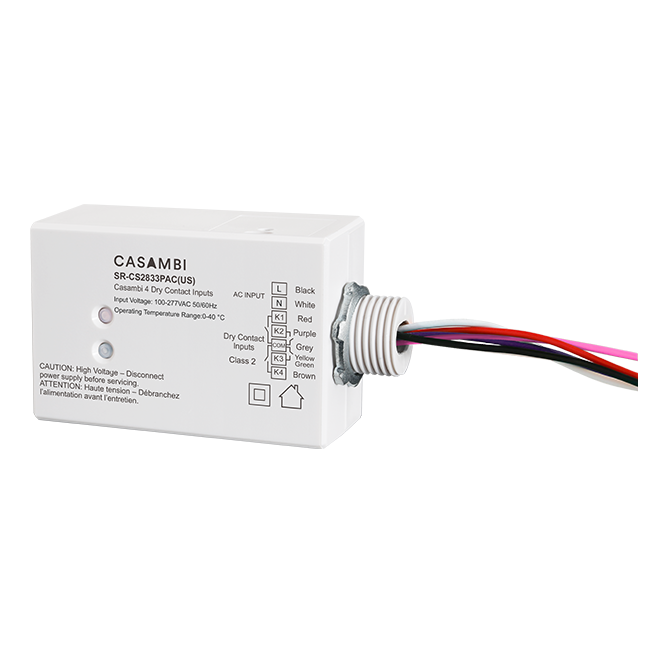

Casambi Push button Coupler SR-CS2833PAC(US)

Features

The Casambi Push Button Coupler enables seamless integration of up to 4 push buttons with Casambi’s wireless lighting control system. Featuring 4 dry contacts, it connects to individual buttons and communicates over a mesh network, extending control range up to 50 meters in typical indoor settings. Button functions are easily configurable via the Casambi app to control luminaires, groups, scenes, and entire networks. Designed for straightforward installation, the coupler fits standard 1/2" knockout junction boxes and is rated IP20 for waterproof protection. With a 5-year warranty, this coupler offers reliable and flexible control for modern lighting systems.

Key Features

• Casambi push button coupler

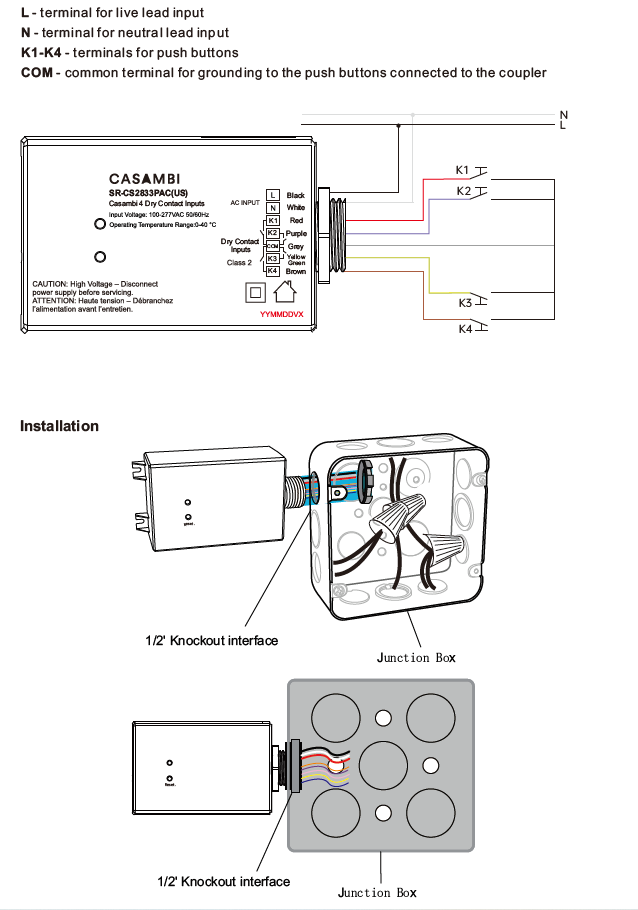

• 4 dry contacts, can connect to 4 push buttons
• Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
• The range for wireless communication is about 50 meters in typical indoor environment, actual range is dependent on field installation
• Button function can be freely configured by Casambi app to control a luminaire, a group, an element, a scene, whole network, etc

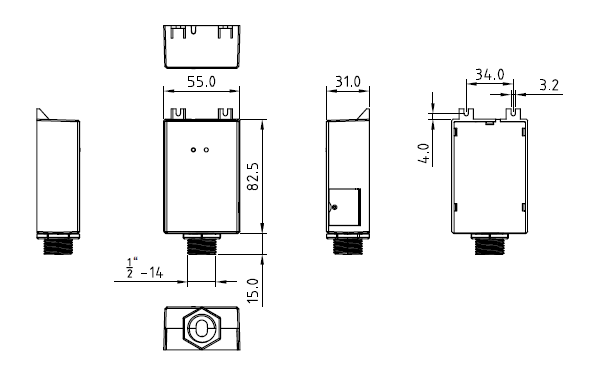

• Standard 1/2'' knockout design, easy to integrated to a junction box
• Waterproof grade: Ip20
• 5 years warranty
