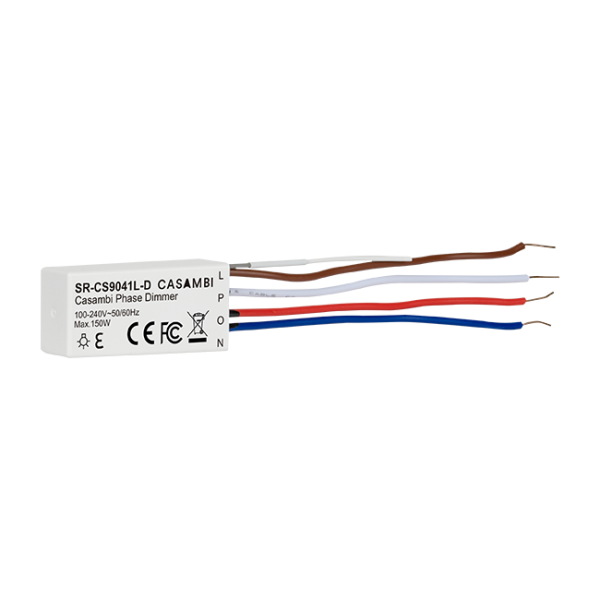

Casambi Micro Smart Dimmer SR-CS9041L-D

• Casambi AC phase cut dimmer
• 100-240VAC Wide Input and Output Voltage
• Supports resistive loads, capacitive loads or inductive loads
• 1 Channel Output, Up to 150W
• Trailing edge dimming
• Enables to control ON/OFF and light intensity of connected light source
• With push switch input, the button function can be configured by Casambi App
• Can be controlled by Casambi App, remotes, wall switches, and kinetic switches
• Typical mesh range is over 50 meters line of sight for an indoor environment
• Supports power metering
• Overload protection and over temperature protection

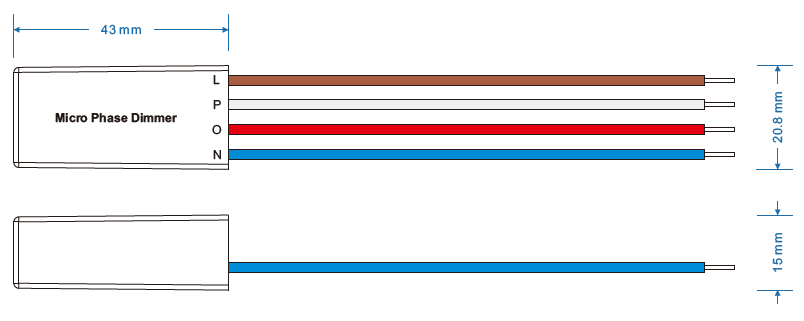

• Ultra Mini Size

Main Features:

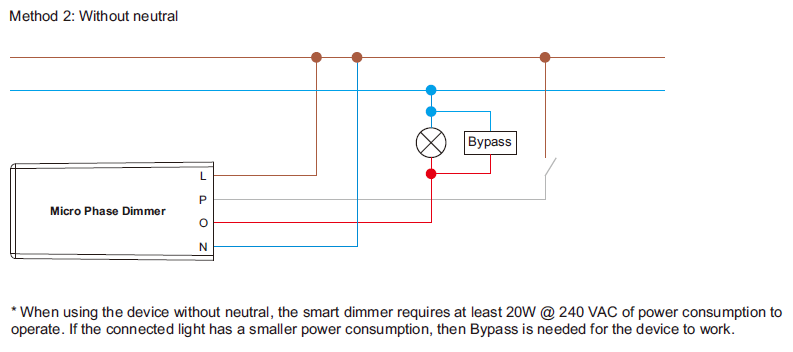

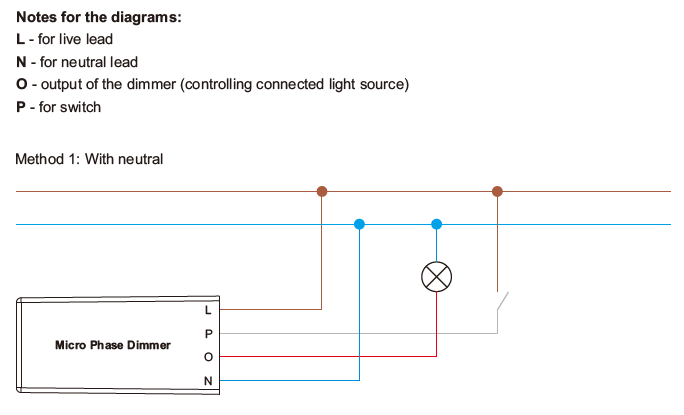

• Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
• Advanced microprocessor control
• Implemented algorithm of smart light source detection
• Active power and energy metering functionality
• Soft start function
• Innovative minimum dimming level and startup brightness setting function
• Works with various types of switches – momentary, toggle, three-way, etc.
• Active element: semiconductor electronic switch
• To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable
regulations
• The Bypass is an extension unit
