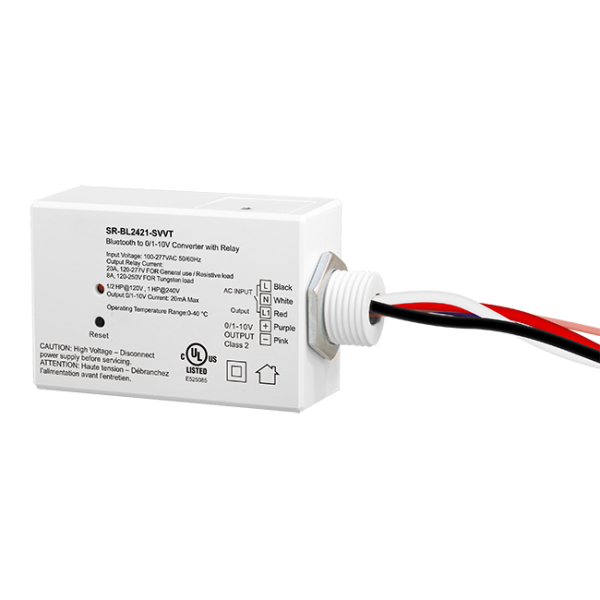

Bluetooth to 0-10V Converter with 20A Relay SR-BL2421-SVVT(SS)

SR-BL2421-SVVT(SS) is a Bluetooth-to-0-10V signal converter powered by 100-277VAC, with a 20A relay output. It receives Bluetooth mesh signal input and provides a 0-10V analog output signal. The 0-10V dimming output has a maximum 20mA current output, which can connect to a minimum of 10PCS 0-10V drivers. It utilizes a Bluetooth® Low Energy (BLE) mesh network. Commissioning can be performed through the Sunsmart mobile app.

Key Features

• Bluetooth to 0-10V signal converter, Bluetooth® mesh network
• Built-in 20mA 0-10V signal output, with 20A relay
• Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
• All devices on 0-10V line are broadcast controlled by Sunsmart Commissioning tools
• Supporting Sunricher kinetic energy switches and EnOcean switches EWSSB and EWSDB
• In typical outdoor environment, the range for wireless communication is about 65meters. Actual range is dependent on field installation
• UL listed, Category: PAZX (Management Equipment, Energy). UL 2043 Plenum Rated
• IPEX antenna
• Waterproof grade: IP20
• 5 years warranty
