- BLE Battery Powered Push-Button Switch SR-SBP2801K4-BLE-E
Product Description
SR-SBP2801K4-BLE-E are wireless push switches for lighting, building or industrial automation control systems using Bluetooth® low energy technology.
SR-SBP2801K4-BLE-E is mechanically compatible with existing switch elements enabling quick integration into a wide range of designs. Key applications are wall-mounted or portable switches either with up to two rockers or up to four push buttons.
SR-SBP2801K4-BLE-E pushbutton transmitters are battery-powered. When the push button is pushed down or released, a radio telegram according to the Bluetooth® low energy standard is transmitted. This radio telegram transmits the status of all four push buttons when the push button was pushed down or released.
SR-SBP2801K4-BLE-E radio telegrams are protected with AES-128 security based on a device-unique private key, and is integrated into European-style single / double rocker wall switch housing.
• Wireless push switches for lighting, building or industrial automation control systems using Bluetooth® low energy technology
• Mechanically compatible with existing switch elements enabling quick integration into a wide range of designs
• Wall-mounted or portable switches either with up to two rockers or up to four push buttons
• Battery-powered
• Transmits a radio telegram according to the Bluetooth® low energy standard
• Transmits the status of all four push buttons when the push button was pushed down or released
• Protected with AES-128 security based on a device-unique private key
• Integrated into European-style single / double rocker wall switch housing
Specifications
Part No. |
Power Supply |
Transmission Range |
Radio Frequency | Size(LxWxH) |
---|---|---|---|---|
SR-SBP2801K4-BLE-E |
3VDC |
min. 30m |
2.4GHz |
80.5x80.5x14.7mm |

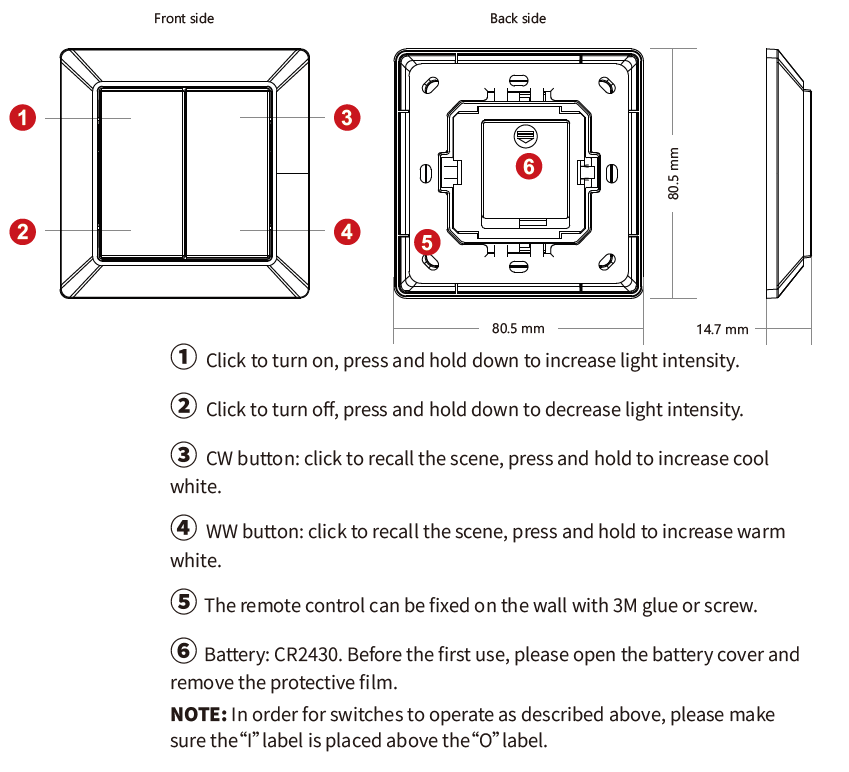

Product Dimension
Download Center
To know further details of this product, please download the following user manual.
SR-SBP2801-BLE-E Instruction.pdf
