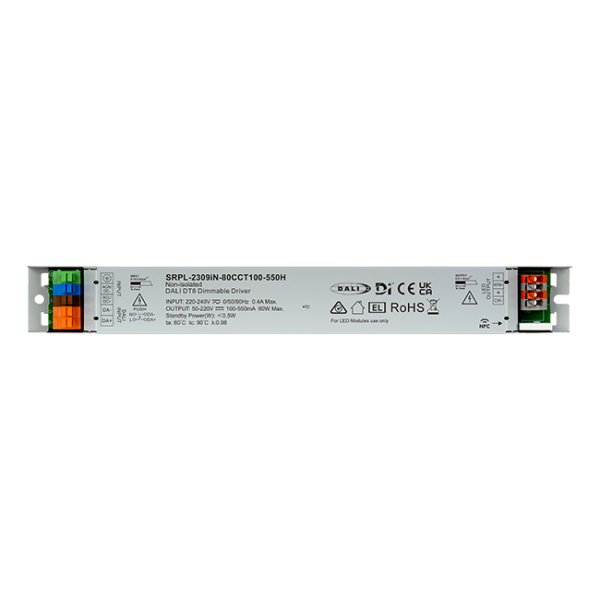

SRPL-2309iN-80CCT100-550H is a D4i DT8 certified long metal casing 80W Non-SELV NFC dimmable LED driver. It is designed with 2 channel constant current output with adjustable current from 100mA to 550mA, which enables it to be suitable for LED lights with different current. It is designed with 220-240VAC input. Power factor of the driver can be over 0.98 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise.
1 DALI address for 2 channels output are assigned by DALI Master controller automatically, or by NFC Programming devices. Complying with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209, this DALI driver is compatible with DALI-2 certified application controllers and control devices.
Key Features
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
• Built-in DALI-2 interface, DALI DT8 device
• Dimmable LED driver with linear metal housing. Max. output power 80W
• 100-550mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• DALI Address/Group/Scene setting via NFC program tool
• Class Ⅱ power supply, isolated design
• High power factor and efficiency
• On/off, Dimming, Tunable White control
• Amplitude/CCR dimming, smooth and deep dimming
• Compatible with universal DALI masters that support DT8 commands
• DALI-250/251/252/253 Enabled, DALI data inside
• Integrated Max.56mA DALI BUS supply, enable to power DALI-2 sensors
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
