40W DALI D4i DT8 NFC LED Driver(Constant Current) SRPL-2309iN-40CCT80-400H

40W DALI D4i DT8 NFC LED Driver(Constant Current) SRPL-2309iN-40CCT80-400H

More Views

  • SRPL-2309N-40CCT80-400H
  • SRPL-2309N-40CCT80-400H
Features

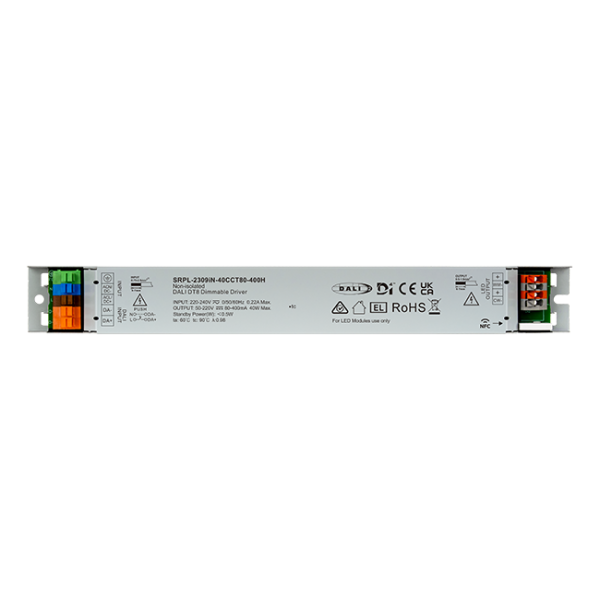

SRPL-2309iN-40CCT80-400H is a D4i DT8 certified long metal casing 40w Non-SELV NFC dimmable LED driver. It is designed with 2 channel constant current output with adjustable current from 80mA to 400mA, which enables it to be suitable for LED lights with different current. It is designed with 220-240VAC input. Power factor of the driver can be over 0.98 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise.

1 DALI address for 2 channels output are assigned by DALI Master controller automatically, or by NFC Programming devices. Complying with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209, this DALI driver is compatible with DALI-2 certified application controllers and control devices.

Key Features

• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209
• Built-in DALI-2 interface, DALI DT8 device
• Dimmable LED driver with linear metal housing. Max. output power 40W
• 80-400mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• DALI Address/Group/Scene setting via NFC program tool
• For luminaires of protection class I and protection class II
• High power factor and efficiency. Non-SELV rated driver
• To switch and dim LED lighting luminaries, Tunable White control
• Amplitude/CCR dimming, smooth and deep dimming
• Compatible with universal DALI masters that support DT8 commands
• DALI-250/251/252/253 Enabled,DALI data inside
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
