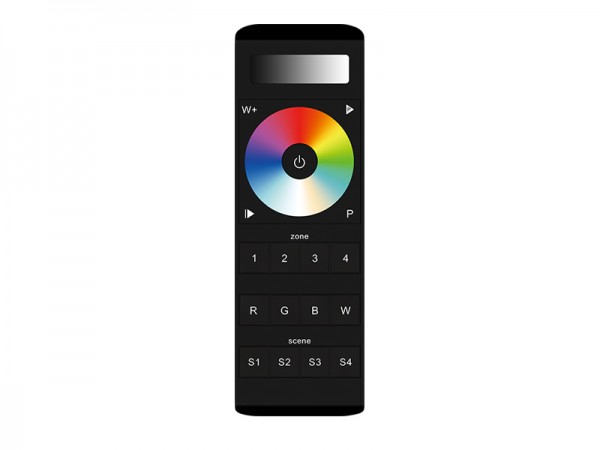

The RGBW RF remote controller SR-2858Z4 is the latest innovation which combines the amazing industrial design and advanced RF control technology from Sunricher. The RGB plus W LED controller is designed with sleek streamline appearance and high end PC material, which looks like an attractive artwork. The RF controller works with SR-1009 series receivers to control RGB+W LED lighting. The ultra sensitive tempered glass RGB touch color wheel enables accurate and fast color tone adjustment and the brightness of each R, G, B, W channel can be adjustable independently to mix millions of colors. The LED controller can control 4 zones separately or synchronously with endless receivers in each zone. There are built-in 10 changing modes with changing speed adjustable. Pattern changing can be synchronized to ensure consistent change forever. 4 scenes can be saved for each zone if you do not like the preset modes. Receivers can be WiFi controlled via APP installed on IOS or Android mobile devices after working with WiFi-RF converter.
Receiver Wiring Diagram for Single Unit
Receiver Wiring Diagram for Multiple Units
To know further details of this product, please download the following user manual.
SR-2858Z4 User Manual
