- 4 Zone Programmable RGBW RF Remote Controller SR-2819SP

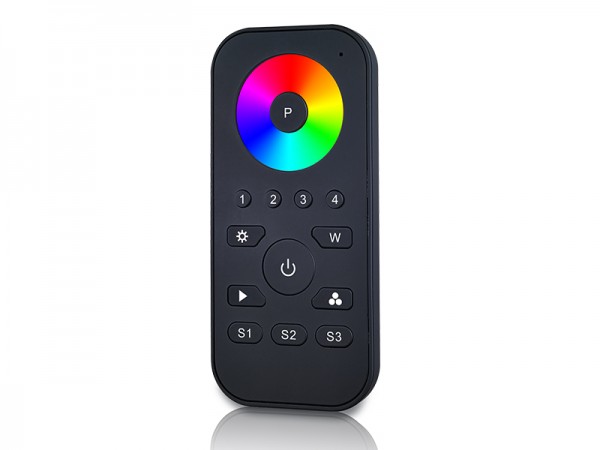

SR-2819SP is a newly released RGBW RF remote controller with programming function which enables users to choose colors or period of colors to program. The RGBW controller can control R, G, B, W four channels with switch and dimming function and is compatible with the new dedicated receiver SR-1009EP. 4 zones can be controlled separately or synchronously with endless receivers in each zone. 3 scenes can be saved for each zone. The touch color wheel offers smooth and accurate RGB color tone adjustment as well as R, G, B mixed white color. Also the mixed white can be accessed by button. RGB channel and the 4th white channel can be switched on/off separately. The RGBW LED controller offers programming function that enables users to choose colors or period of colors to program. 4 changing modes including fade, jump, flash and strobe are available with 8 levels of changing speed adjustable.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) |
---|---|---|---|
SR-2819SP | 4.5VDC | 434MHz/869.5MHz/916.5MHz | 55*120*17 |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 58*168*28 |
Product Dimension
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2819SP User Manual
