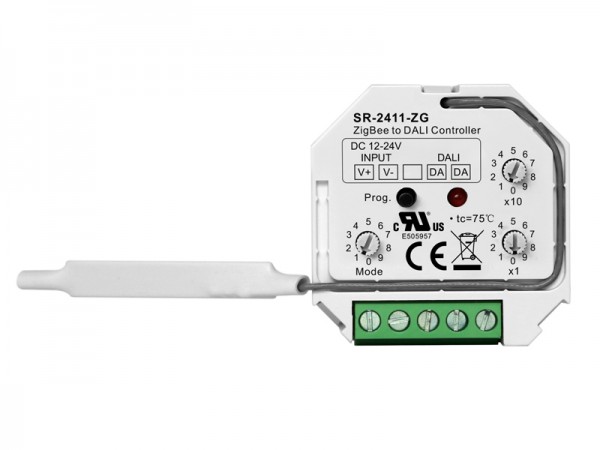

4 in 1 Zigbee to DALI Controller SR-2411-ZG

SR-2411-ZG is a 4 in 1 DALI controller that receives zigbee signal and can be controlled through zigbee gateway or hub interface. The zigbee to DALI controller converts the wireless signal to DALI. It is powered by 12V/24VDC. In compliance with IEC 62386-102, IEC 62386-207, IEC 62386-209:2011,the DALI wireless controller can be compatible with DALI products from other international incorporations.

The wireless DALI controller is a 4 in 1 controller which enables to control 4 DALI DT6 and DT8 device types including DT6, DT8 Tc, DT8 XY coordinate, DT8 RGBWAF. A rotary switch is used to select a control mode to determine which device type to control and to select group control mode or single control gear control mode. Whatever your DALI device type is, this controller can be compatible with it.

This controller enables to select and control designated DALI group/address on DALI line. Rotary switches are used to set the DALI group/address number to be controlled.Total 16 groups or 64 addresses can be selected. It also can control all devices on DALI line via broadcast. Each DALI line can install multiple controllers for multi control points.

It is easy to pair the DALI wireless controller to a zigbee network. It can be controlled by zigbee gateway/hub, or it can directly pair to a zigbee remote through touchlink and controlled by the remote. Each controller can bind to max. 30 zigbee remotes through gateway/hub interface.

The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power switches directly without zigbee hub or gateway.

Key Features

• Zigbee to DALI wireless 4 in 1 Controller
• Receives zigbee wireless signal and outputs DALI signal to DALI line
• Enables to control 4 DALI DT6 and DT8 device types including DT6, DT8 Tc, DT8 XY coordinate, DT8 RGBWAF.
• Compatible with universal DALI master controllers that support DT6 & DT8 commands
• 12V/24VDC Powered
• Can be controlled through zigbee gateway or hub interface
• Compatible with universal zigbee gateway/hub
• Can directly pair to a zigbee remote through touchlink and be controlled by the remote
• Can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink
• Supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power switches
• Compatible with universal zigbee remotes
• A rotary switch is used to select a control mode to determine which device type to control and to select group control mode or single control gear control mode
• Enable to control 1 DALI Group of devices
• Enable to select and control designated DALI group (0-15)
• Enable to control all devices on DALI line via broadcast
• Enable to select and control 1 designated DALI address (00-63)
• Each DALI line can install multiple controllers for multi control points
