This ZigBee 3.0 push button dimmer supports 100–240VAC input with or without neutral wiring, adaptable to resistive, capacitive, and inductive loads. It provides ON/OFF control, dimming, minimum and startup brightness settings, energy metering, and soft start. The device supports Touchlink, find & bind, self-forming ZigBee networks, and ZigBee Green Power (up to 20 remotes). Compatible with ZigBee gateways, remotes, and universal AC push switches, it delivers up to 500W output and fits standard EU wall boxes.
Key Features:
• ZigBee push button smart dimmer based on latest ZigBee 3.0 protocol

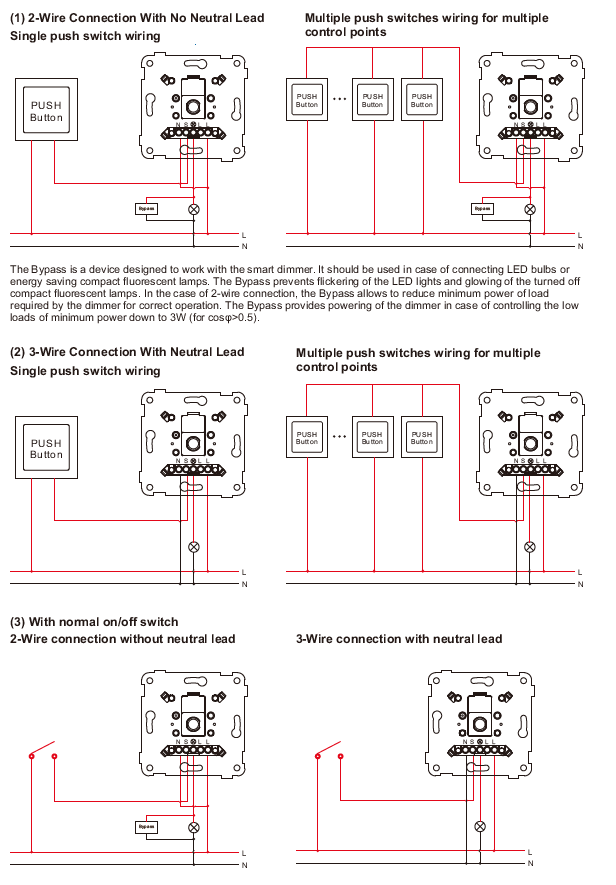

• 100-240VAC wide input and output voltage, can work under no neutral wiring and with neutral wiring, self-adaptive
• Supports resistive loads, capacitive loads or inductive loads
• Enables to set minimum brightness and startup brightness
• 1 channel output, up to 500W
• Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
• Enables to control ON/OFF and light intensity of connected light source
• Supports energy metering, real time energy consumption can be monitored
• ZigBee device that supports Touchlink commissioning
• Can be controlled by zigbee gateway, zigbee remote and local push buttons
• Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
• Supports self-forming zigbee network without coordinator and add other devices to the network
• Supports find and bind mode to bind a ZigBee remote
• Supports zigbee green power and can bind max. 20 zigbee green power remotes
• Compatible with universal ZigBee gateway products
• With push switch input, can be controlled by universal AC push switches

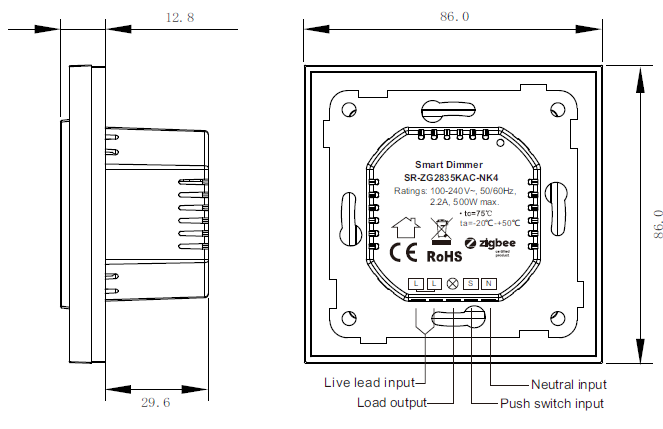

• Standard size, can be compatible with existing EU standard frames, and installed into standard size wall box
• Radio Frequency: 2.4GHz
• Waterproof grade: IP20
