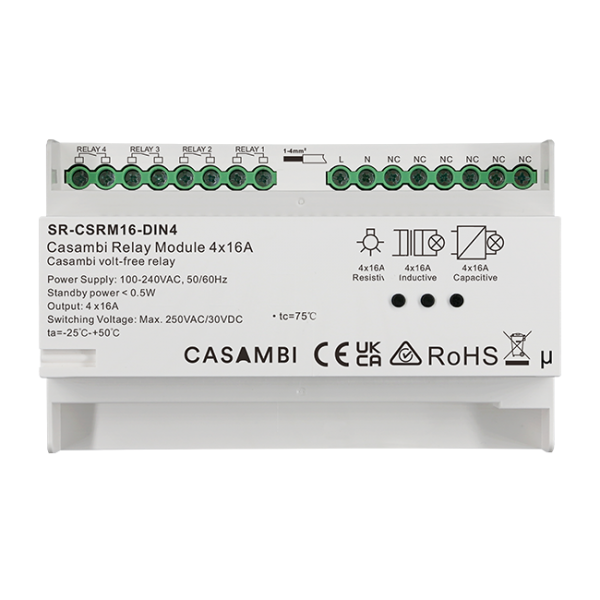

4 Channels DIN Rail Casambi Relay SR-CSRM16-DIN4

The 4 Channels DIN Rail Casambi Relay is a versatile relay module with a 100-240VAC power supply, designed to control up to four standard contactors. Each of the four endpoints can be controlled individually via the Casambi app, remotes, wall switches, or kinetic switches, enabling wireless network control. With a typical mesh range of over 50 meters in line-of-sight indoor environments, the relay offers reliable performance. Featuring zero crossing detection for extended switching life, it is compatible with standard 35mm DIN rails for easy installation. The unit is rated IP20 for waterproof protection and comes with a 5-year warranty.

Features

• Casambi relay module
• 100-240VAC power supply
• 4 channels relay module, control of 4 standard contactors
• Casambi device with 4 endpoints which can be controlled separately
• Typical mesh range is over 50 meters line of sight for indoor environment
• The relay can be controlled by Casambi app, remotes, wall switches, kinetic switches, the buttons can control Casambi network wirelessly
• With zero crossing detection, the relay switching life cycle greatly increased
• DIN rail installation, compatible with standard 35mm DIN rail
• 5 years warranty
• Waterproof grade: IP20
