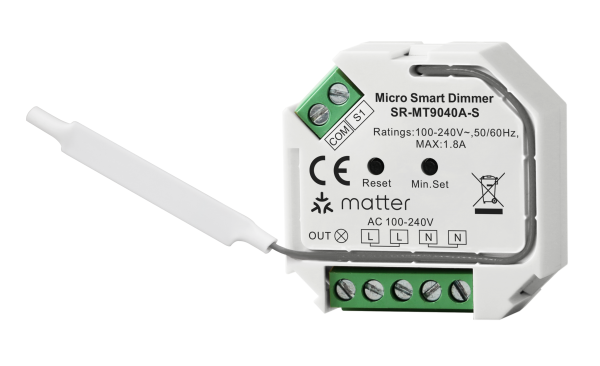

Matter Thread Mini AC Triac Phase-Cut Dimmer Single Live Wire SR-MT9040A-S

The Matter Thread AC Phase Cut Dimmer is a versatile and compact device that supports a wide input voltage range of 100-240VAC and works with resistive, capacitive, and inductive loads. With a single channel output of up to 400W, it features trailing edge dimming and is compatible with Matter gateways like the Apple HomePod mini, Google Home, and Amazon Echo. It can be controlled through the Apple Home, Google Home, or Amazon Alexa apps, and supports voice control via Siri, Google Assistant, and Alexa. The dimmer is easy to install in a standard wall box, supports both two-wire without Neutral input and three-wire with Neutral input connections, and includes advanced features like smart light source detection, energy metering, soft start, and customizable dimming settings. With an IP20 waterproof rating, it is safe, reliable, and adaptable to various switch types.

Features

• Matter thread AC phase cut dimmer
• 100-240VAC wide input and output voltage
• Supports resistive loads, capacitive loads or inductive loads
• 1 channel output, up to 400W
• Input and output with screw terminals, safe and reliable
• Trailing edge dimming
• Compatible with universal Matter gateways: the latest Apple HomePod mini, Google Home, Amazon Echo devices etc.
• Can be controlled through the Apple Home app, Google Home app, Amazon Alexa app
• Can be voice controlled through Apple Siri, Google Assistant, Amazon Alexa
• Mini Size, easy to be installed into a standard wall box
• Waterproof grade: IP20

Main Features

• Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
• Advanced microprocessor control
• Implemented algorithm of smart light source detection
• Active power and energy metering functionality
• Soft start function
• Innovative minimum dimming level and startup brightness setting function
• Works with various types of switches – momentary, toggle, three-way, etc.
• Active element: semiconductor electronic switch
• To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
• The Bypass is an extension unit
