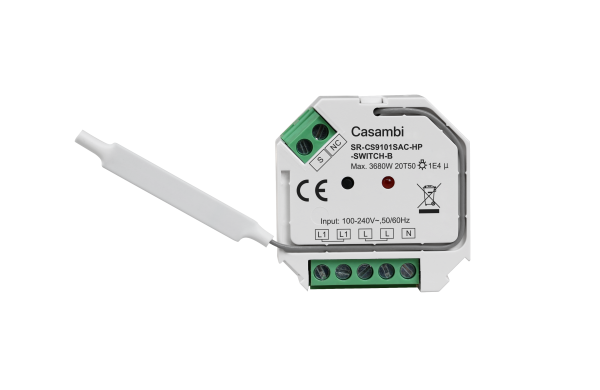

The SR-CS9101SAC-HP-SWITCH-B is an innovative AC in wall switch with Casambi control interface and 16A relay output. The Casambi relay SR-CS9101SAC-HP-SWITCH-B is designed with 100-240VAC wide input and output, 1 channel and maximum 3680W output. The Casambi on/off light device supports resistive loads and capacitive loads, and enables to control ON/OFF of connected load. The AC switch can be compatible with universal Casambi wall switches and remotes.
It also supports 1 channel Push button input, can be configured through Casambi App to control elements, luminaires, groups, scenes.
Casambi Technology Explained
The Casambi technology provides a mesh network where all the intelligence of the system is replicated in every node and, in such a way, creates a system with no single point of failure. In this kind of fully distributed architecture, any unit can go offline and catch up from others when they return back online.
Key Features
• 100-240VAC wide input and output voltage
• Supports resistive loads and capacitive loads
• 1 channel output, max. load 16A
• Input and output with screw terminals, safe and reliable
• Enables to control ON/OFF of connected load
• Casambi bluetooth, 2.4GHz radio frequency
• Radio range: 164 feet (50m) in open field. Actual range is dependent on field installation.
• Compatible with universal Casambi wall switches and remotes
• 1 channel push button input, can be configured through Casambi App to control elements, luminaires, groups, scenes
• Mini size, easy to be installed into a standard size wall box
• Waterproof grade: IP20
